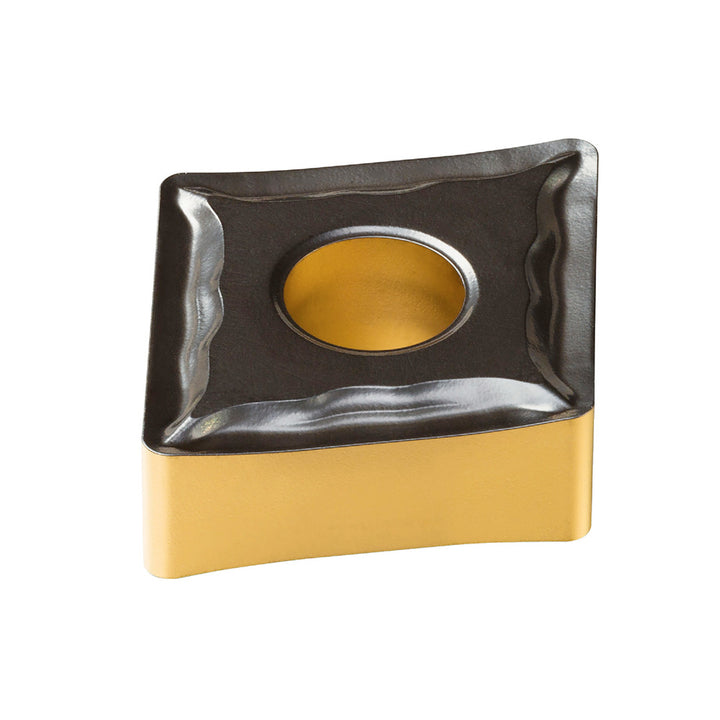

CNMG 12 04 08-MF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019602
MFR# 8019602ISO/ANSI# CNMG120408Cat# CNMG 12 04 08-MF 4425Series CNMG-MF (ISO P)
$20.67List $26.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019602 is a CNMG 12 04 08-MF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerMF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-MF 4425
Iso insert codeCNMG120408
Iso size code120408
Manufacturers catalog numberCNMG 12 04 08-MF 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Side clearanceNegative
Tolerance codeM
