Sandvik Coromant

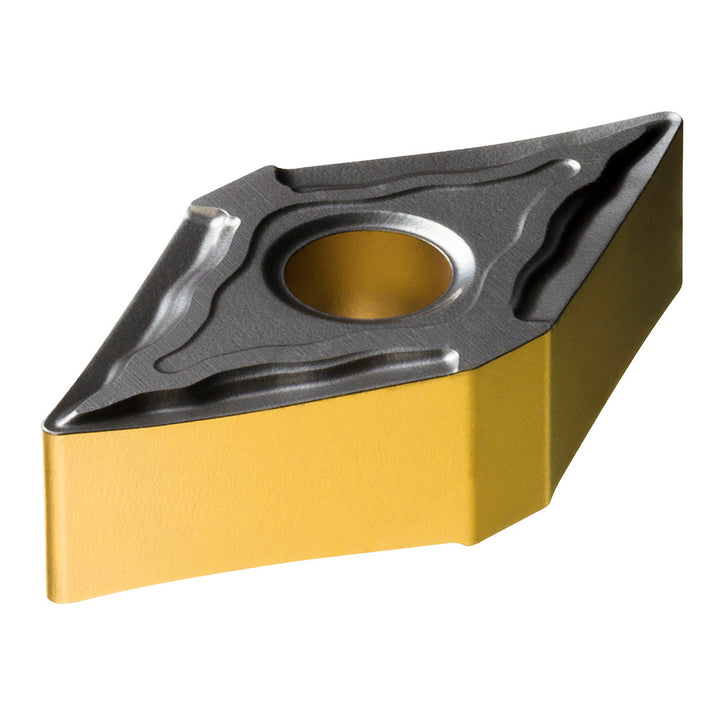

DNMG 15 06 04-MF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019609
MFR# 8019609ISO/ANSI# DNMG 15 06 04-MF 4425Cat# DNMG 15 06 04-MF 4425Series DNMG-MF (ISO P)
$28.63List $36.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019609 is a DNMG 15 06 04-MF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code441
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 04-MF 4425
Manufacturers catalog numberDNMG 15 06 04-MF 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
