Sandvik Coromant
DNMG 15 06 12-MF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019611
MFR# 8019611ISO/ANSI# DNMG 15 06 12-MF 4425Cat# DNMG 15 06 12-MF 4425Series DNMG-MF (ISO P)
$28.51List $36.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4425
MaterialCarbide
CoatingTiCN
Description

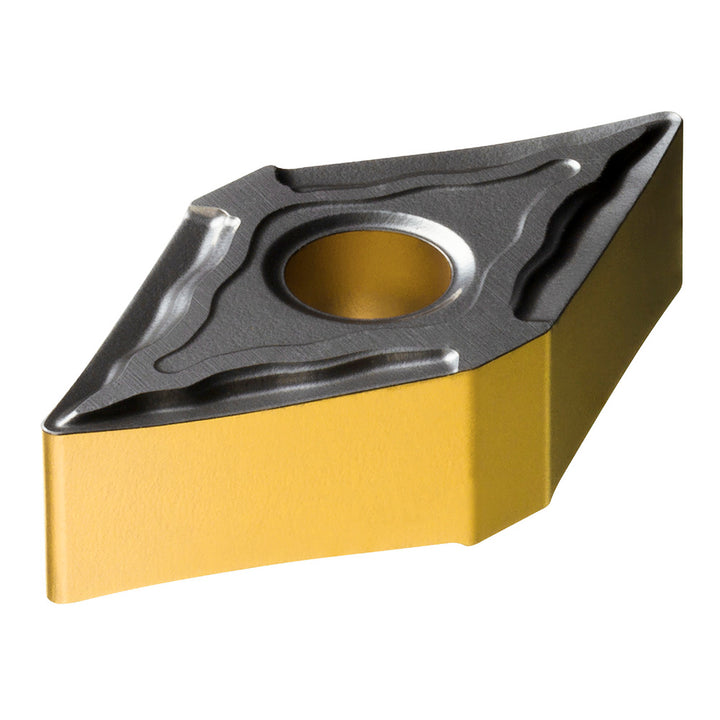

The Sandvik Coromant 8019611 is a DNMG 15 06 12-MF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code443
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 12-MF 4425
Manufacturers catalog numberDNMG 15 06 12-MF 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
