Sandvik Coromant

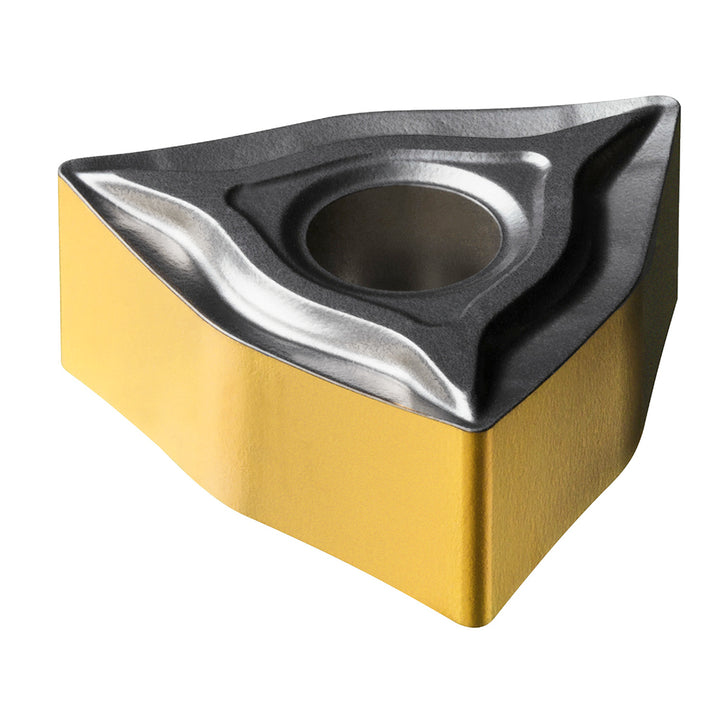

WNMG 08 04 08-MF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019628
MFR# 8019628ISO/ANSI# WNMG 08 04 08-MF 4425Cat# WNMG 08 04 08-MF 4425Series T-Max P
$21.69List $27.33
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019628 is a WNMG 08 04 08-MF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-MF 4425
Manufacturers catalog numberWNMG 08 04 08-MF 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
