Sandvik Coromant
CNMG 12 04 08-MR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019632
MFR# 8019632ISO/ANSI# CNMG 12 04 08-MR 4425Cat# CNMG 12 04 08-MR 4425Series T-Max P
$20.67List $26.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description

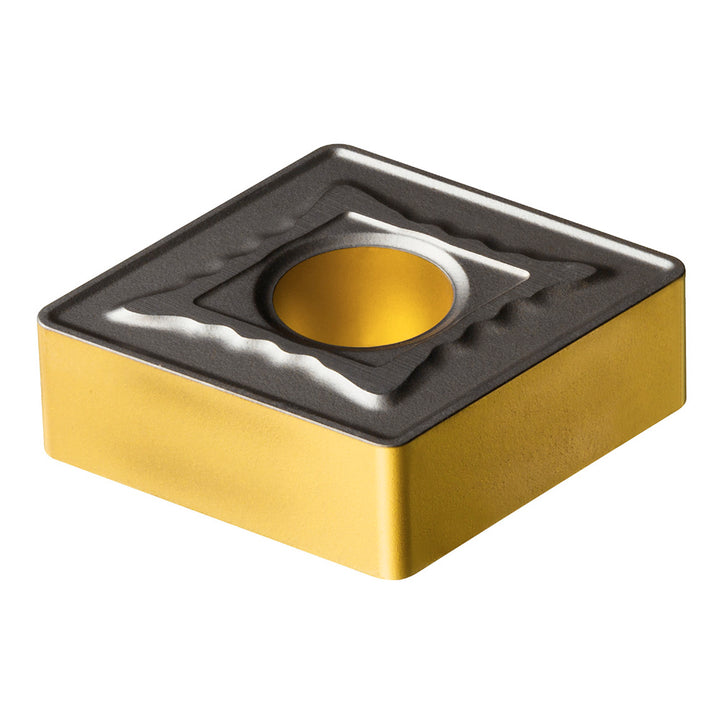

The Sandvik Coromant 8019632 is a CNMG 12 04 08-MR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-MR 4425
Manufacturers catalog numberCNMG 12 04 08-MR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
