Sandvik Coromant

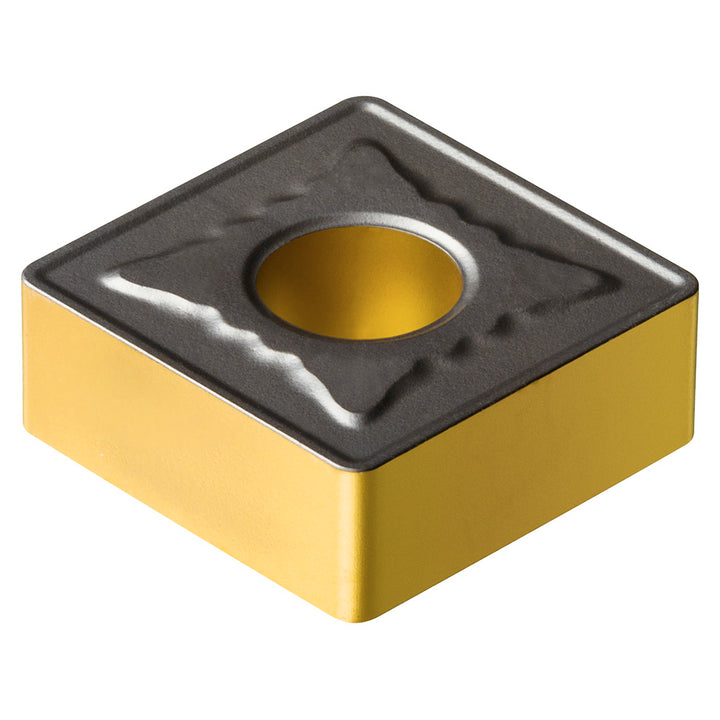

SNMG 12 04 16-MR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019657
MFR# 8019657ISO/ANSI# SNMG 12 04 16-MR 4425Cat# SNMG 12 04 16-MR 4425Series SNMG-MR (ISO P)
$18.70List $23.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019657 is a SNMG 12 04 16-MR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code434
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 16-MR 4425
Manufacturers catalog numberSNMG 12 04 16-MR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
