Sandvik Coromant

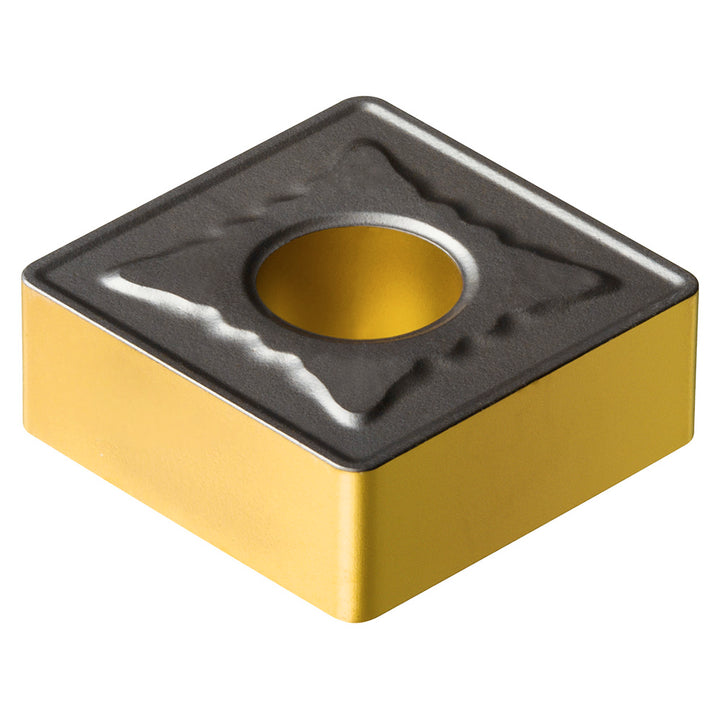

SNMG 19 06 08-MR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019660
MFR# 8019660ISO/ANSI# SNMG 19 06 08-MR 4425Cat# SNMG 19 06 08-MR 4425Series SNMG-MR (ISO P)
$45.72List $58.64
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019660 is a SNMG 19 06 08-MR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1906
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 08-MR 4425
Manufacturers catalog numberSNMG 19 06 08-MR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
