Sandvik Coromant

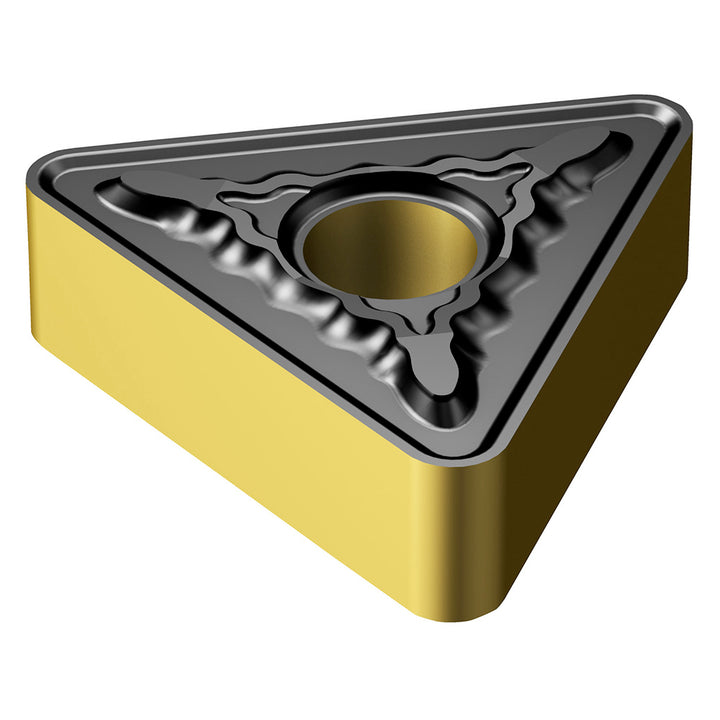

TNMG 16 04 08-MR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019663
MFR# 8019663ISO/ANSI# TNMG160408Cat# TNMG 16 04 08-MR 4425Series TNMG-MR (ISO P)
$18.15List $23.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019663 is a TNMG 16 04 08-MR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTNMG332
Ansi size code332
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeT - Triangle
Insert size code1604
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-MR 4425
Iso insert codeTNMG160408
Iso size code160408
Manufacturers catalog numberTNMG 16 04 08-MR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Side clearanceNegative
Tolerance codeM
