Sandvik Coromant

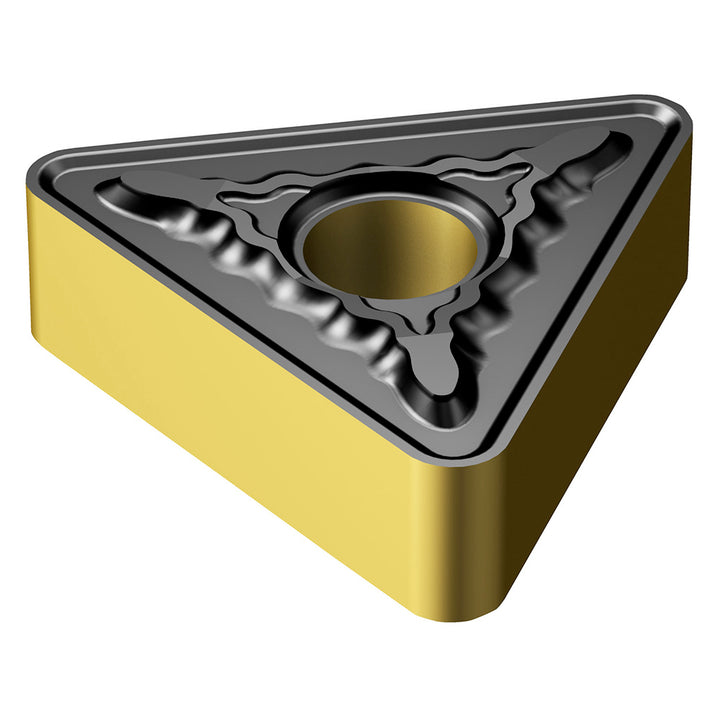

TNMG 16 04 12-MR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019664
MFR# 8019664ISO/ANSI# TNMG 16 04 12-MR 4425Cat# TNMG 16 04 12-MR 4425Series TNMG-MR (ISO P)
$18.57List $23.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019664 is a TNMG 16 04 12-MR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1604
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 12-MR 4425
Manufacturers catalog numberTNMG 16 04 12-MR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
