Sandvik Coromant
TNMG 22 04 12-MR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019666
MFR# 8019666ISO/ANSI# TNMG 22 04 12-MR 4425Cat# TNMG 22 04 12-MR 4425Series TNMG-MR (ISO P)
$23.04List $29.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4425
MaterialCarbide
CoatingTiCN
Description

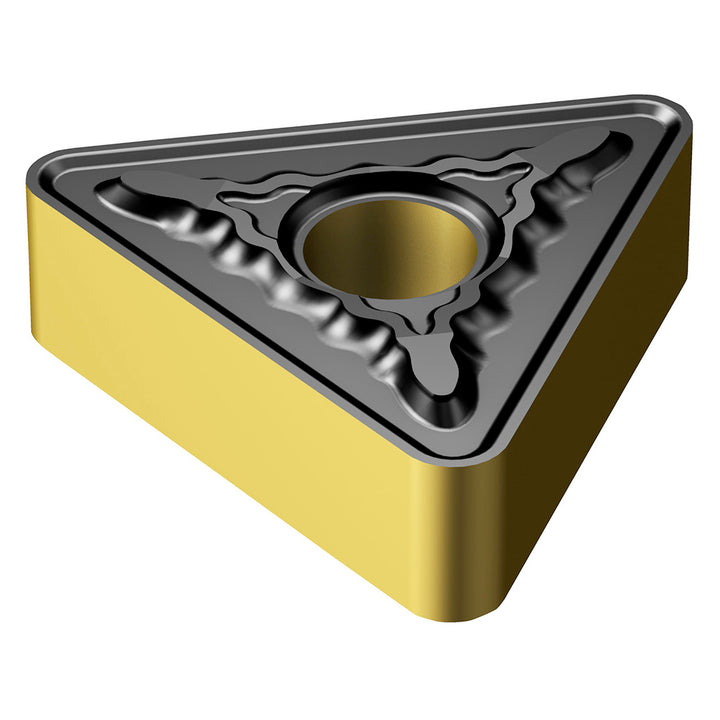

The Sandvik Coromant 8019666 is a TNMG 22 04 12-MR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code2204
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 12-MR 4425
Manufacturers catalog numberTNMG 22 04 12-MR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
