Sandvik Coromant

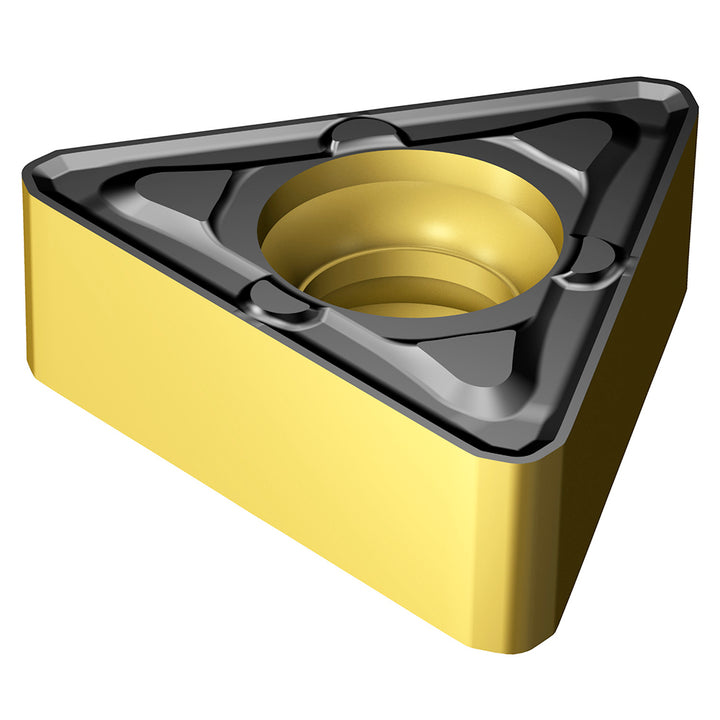

TNMU 16 04 12-WM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019704
MFR# 8019704ISO/ANSI# TNMU 16 04 12-WM 4425Cat# TNMU 16 04 12-WM 4425Series TNMU-WM
$19.73List $25.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019704 is a TNMU 16 04 12-WM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1604
Insert styleTNMU
Insert thickness in3/16
Iso codeTNMU 16 04 12-WM 4425
Manufacturers catalog numberTNMU 16 04 12-WM 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
