Sandvik Coromant

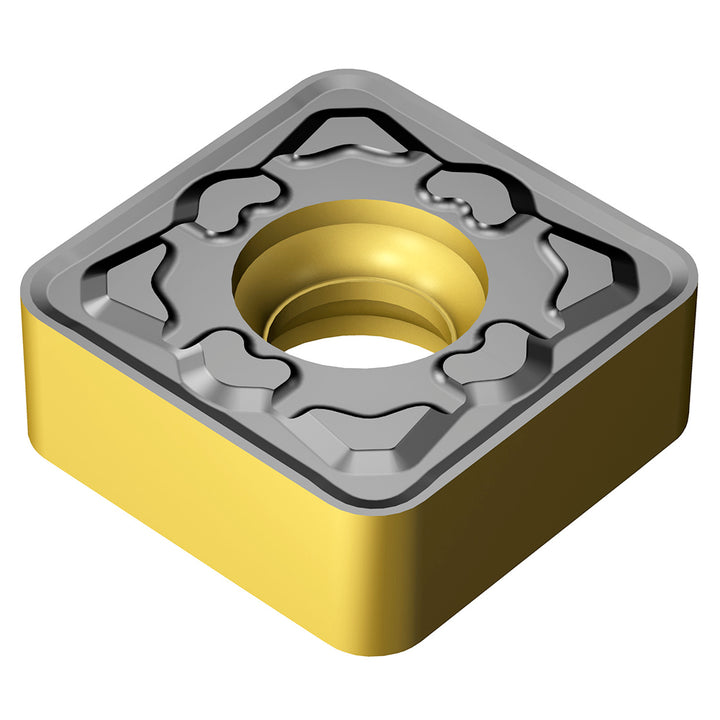

SNMU 12 04 16-KM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019705
MFR# 8019705ISO/ANSI# SNMU 12 04 16-KM 4425Cat# SNMU 12 04 16-KM 4425Series SNMU-KM
$19.38List $24.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019705 is a SNMU 12 04 16-KM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code434
Insert styleSNMU
Insert thickness in3/16
Iso codeSNMU 12 04 16-KM 4425
Manufacturers catalog numberSNMU 12 04 16-KM 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
