Sandvik Coromant

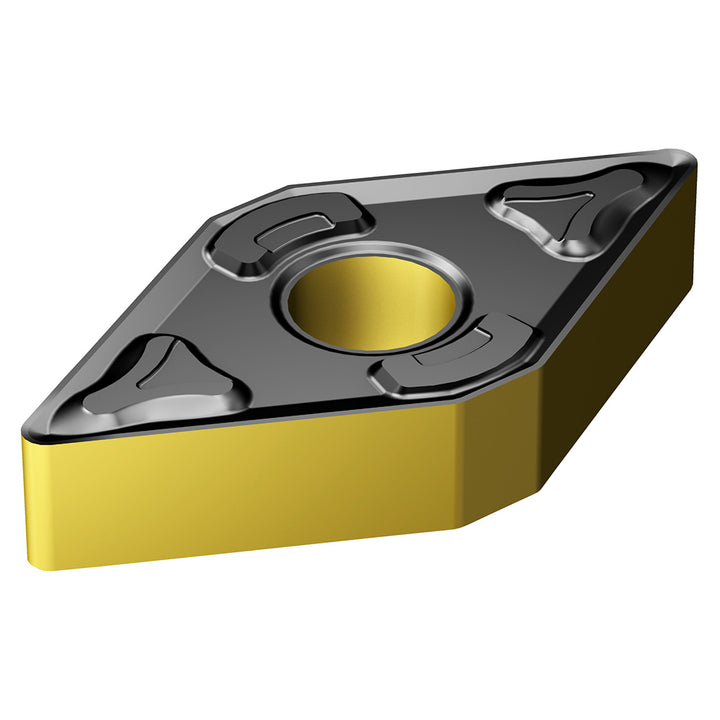

DNMG 15 04 04-XM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019709
MFR# 8019709ISO/ANSI# DNMG 15 04 04-XM 4425Cat# DNMG 15 04 04-XM 4425Series DNMG-XM
$26.10List $33.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019709 is a DNMG 15 04 04-XM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Iso codeDNMG 15 04 04-XM 4425
Manufacturers catalog numberDNMG 15 04 04-XM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Tolerance codeM
