Sandvik Coromant

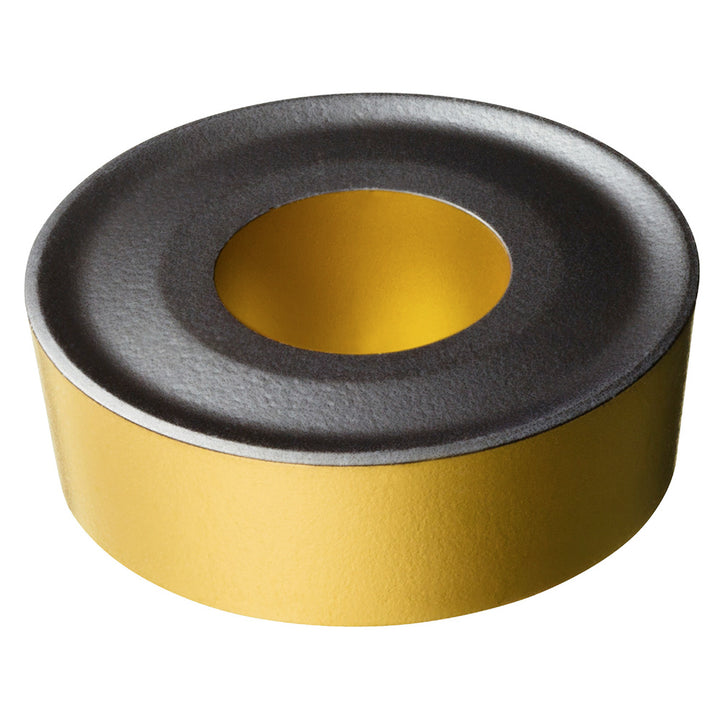

RCMX 10 03 00 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8020976
MFR# 8020976ISO/ANSI# RCMX 10 03 00 4415Cat# RCMX 10 03 00 4415Series RCMX
$12.63List $16.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8020976 is a RCMX 10 03 00 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.1969
Inscribed circle0.3937
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1003
Insert styleRCMX
Insert thickness in1/8
Iso codeRCMX 10 03 00 4415
Manufacturers catalog numberRCMX 10 03 00 4415
Manufacturer grade4415
Relief angle7
Tolerance codeM
