Sandvik Coromant
VBMT 16 04 08-PMC 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8020983
MFR# 8020983ISO/ANSI# VBMT 16 04 08-PMC 4415Cat# VBMT 16 04 08-PMC 4415Series VBMT-PMC
$26.02List $33.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4415
CoatingTiCN
Description

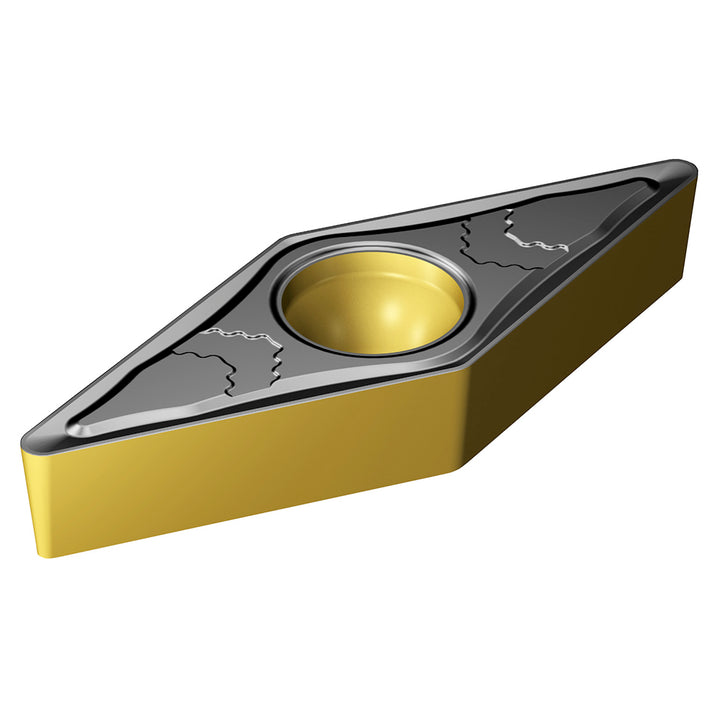

The Sandvik Coromant 8020983 is a VBMT 16 04 08-PMC 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert size code1604
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-PMC 4415
Manufacturers catalog numberVBMT 16 04 08-PMC 4415
Manufacturer grade4415
Relief angle5
Tolerance codeM
