CPMT 09 T3 08-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8020991

Sandvik Coromant

CPMT 09 T3 08-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8020991

MFR# 8020991ISO/ANSI# CPMT 09 T3 08-PM 4415Cat# CPMT 09 T3 08-PM 4415Series CPMT-PM

$17.46List $22.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
Grade4415
CoatingTiCN

Description

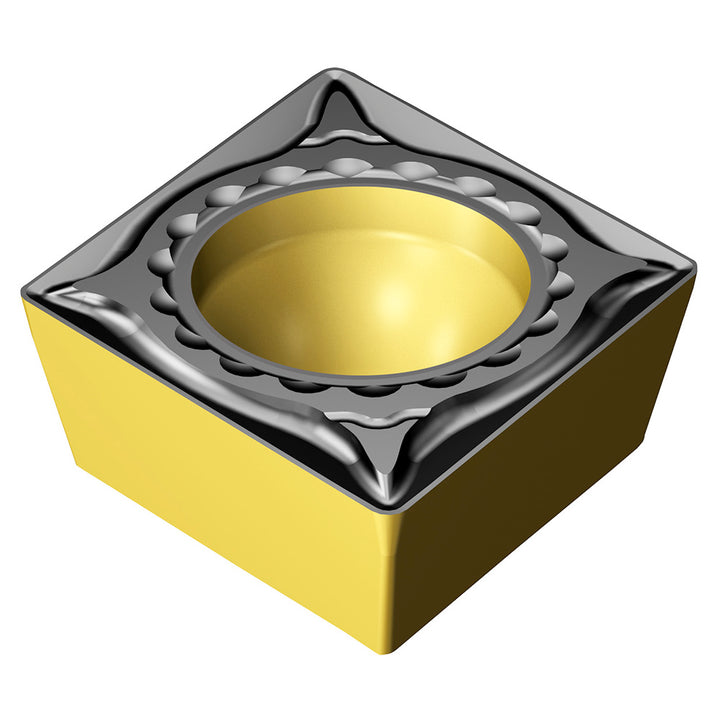

The Sandvik Coromant 8020991 is a CPMT 09 T3 08-PM 4415 carbide indexable insert, grade 4415, TiCN coated.

Specifications

Chip breakerPR
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert size code32.52
Insert styleCPMT
Insert thickness0.1563
Iso codeCPMT 09 T3 08-PM 4415
Manufacturers catalog numberCPMT 09 T3 08-PM 4415
Manufacturer grade4415
Relief angle11
Tolerance codeM
