Sandvik Coromant

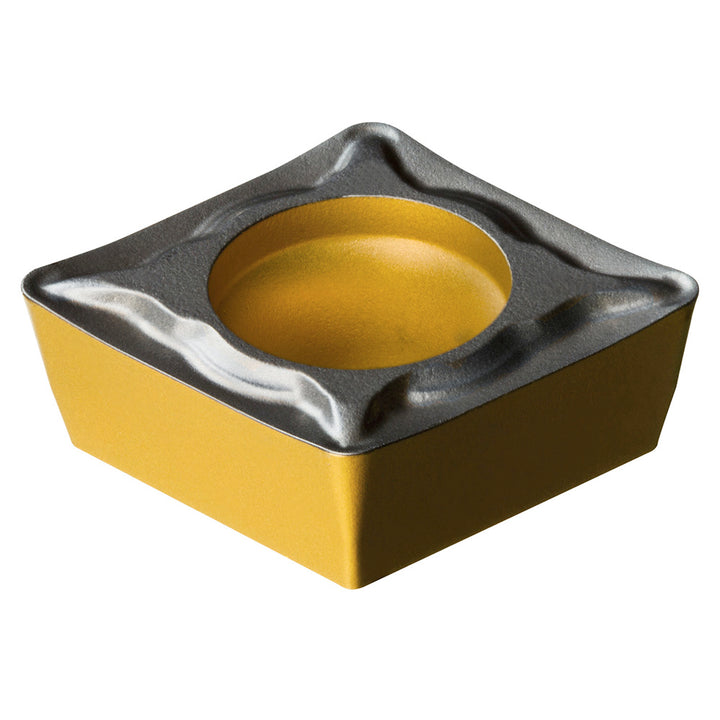

CPMT 09 T3 08-UM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8020992
MFR# 8020992ISO/ANSI# CPMT 09 T3 08-UM 4415Cat# CPMT 09 T3 08-UM 4415Series CPMT-UM
$18.52List $23.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4415
CoatingTiCN
Description
The Sandvik Coromant 8020992 is a CPMT 09 T3 08-UM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert size code32.52
Insert styleCPMT
Insert thickness0.1563
Iso codeCPMT 09 T3 08-UM 4415
Manufacturers catalog numberCPMT 09 T3 08-UM 4415
Manufacturer grade4415
Relief angle11
Tolerance codeM
