Sandvik Coromant
DPMT 11 T3 04-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8020996
MFR# 8020996ISO/ANSI# DPMT 11 T3 04-PM 4415Cat# DPMT 11 T3 04-PM 4415Series DPMT-PM
$21.98List $27.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4415
CoatingTiCN
Description

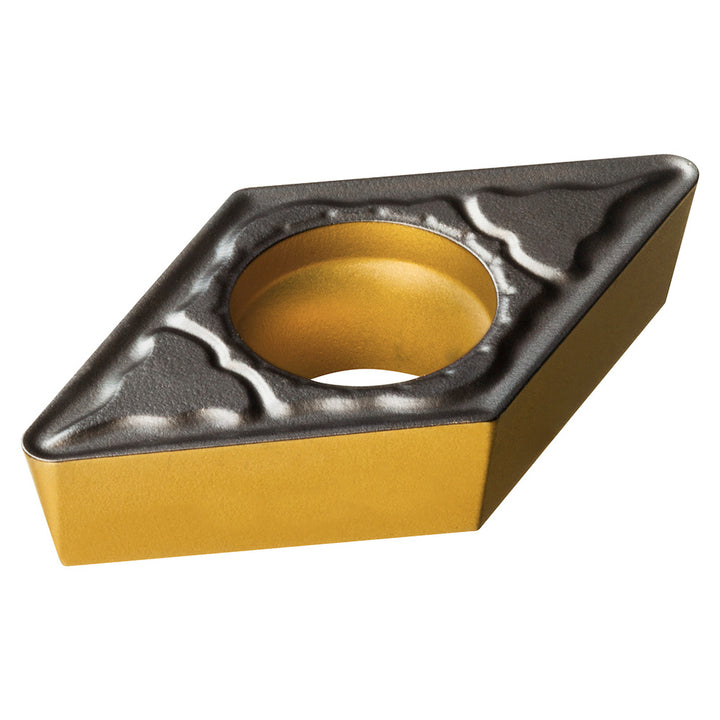

The Sandvik Coromant 8020996 is a DPMT 11 T3 04-PM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert size code32.51
Insert styleDPMT
Insert thickness0.1563
Iso codeDPMT 11 T3 04-PM 4415
Manufacturers catalog numberDPMT 11 T3 04-PM 4415
Manufacturer grade4415
Relief angle11
Tolerance codeM
