Sandvik Coromant

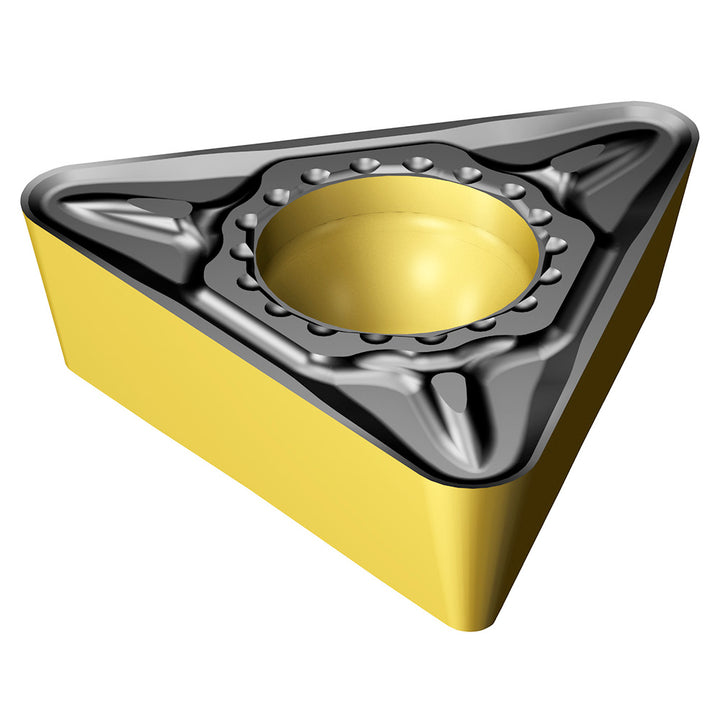

TPMT 09 02 04-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021000
MFR# 8021000ISO/ANSI# TPMT 09 02 04-PM 4415Cat# TPMT 09 02 04-PM 4415Series TPMT-PM
$15.80List $19.92
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4415
CoatingTiCN
Description
The Sandvik Coromant 8021000 is a TPMT 09 02 04-PM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle0.2188
Insert handNeutral
Insert holding methodClamp; Screw
Insert size code1.81.5
Insert styleTPMT
Insert thickness0.0938
Iso codeTPMT 09 02 04-PM 4415
Manufacturers catalog numberTPMT 09 02 04-PM 4415
Manufacturer grade4415
Relief angle11
Tolerance codeM
