Sandvik Coromant
TPMT 16 T3 04-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021006
MFR# 8021006ISO/ANSI# TPMT 16 T3 04-PM 4415Cat# TPMT 16 T3 04-PM 4415Series TPMT-PM
$22.95List $29.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4415
CoatingTiCN
Description

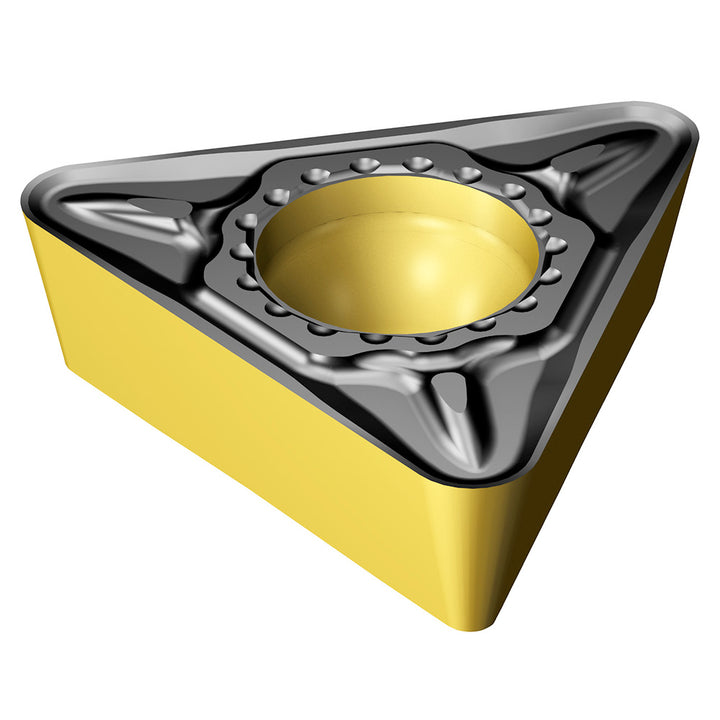

The Sandvik Coromant 8021006 is a TPMT 16 T3 04-PM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert size code16T3
Insert styleTPMT
Insert thickness0.1563
Iso codeTPMT 16 T3 04-PM 4415
Manufacturers catalog numberTPMT 16 T3 04-PM 4415
Manufacturer grade4415
Relief angle11
Tolerance codeM
