Sandvik Coromant
TPMT 16 T3 08-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021007
MFR# 8021007ISO/ANSI# TPMT16T308Cat# TPMT 16 T3 08-PM 4415Series TPMT-PM
$22.95List $29.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade4415
CoatingTiCN
Description

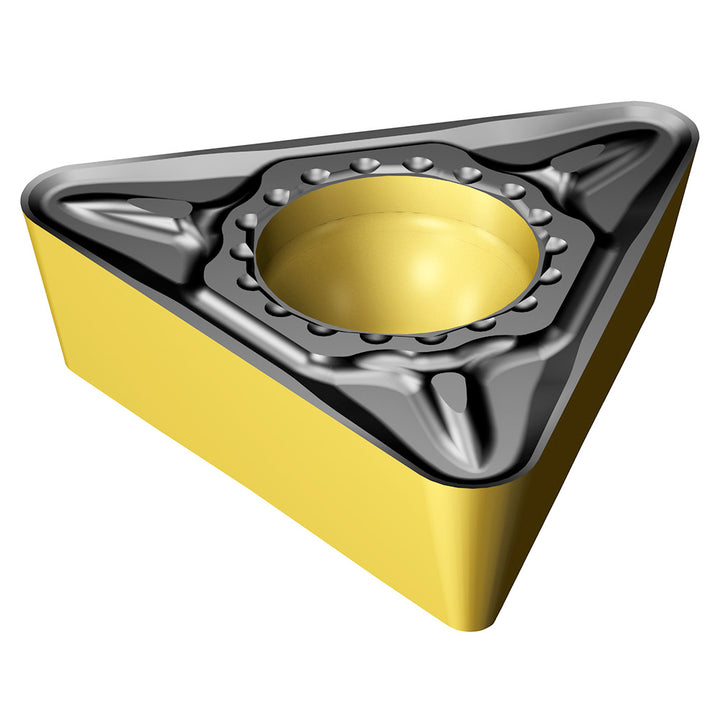

The Sandvik Coromant 8021007 is a TPMT 16 T3 08-PM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Ansi insert codeTPMT32.52
Ansi size code32.52
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert shapeT - Triangle
Insert size code16T3
Insert styleTPMT
Insert thickness0.1563
Iso codeTPMT 16 T3 08-PM 4415
Iso insert codeTPMT16T308
Iso size code16T308
Manufacturers catalog numberTPMT 16 T3 08-PM 4415
Manufacturer grade4415
Relief angle11
Side clearancePositive
Tolerance codeM
