Sandvik Coromant

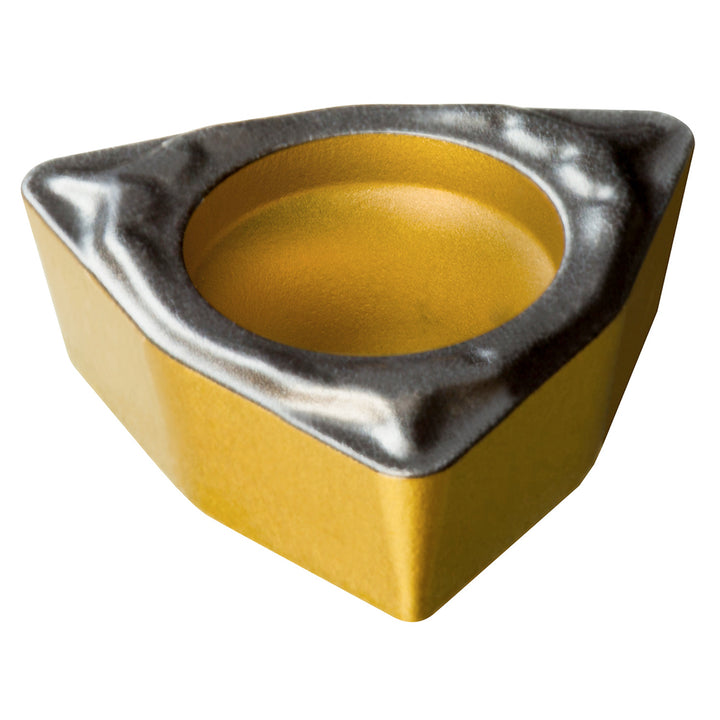

WPMT 04 02 04-PF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021009
MFR# 8021009ISO/ANSI# WPMT 04 02 04-PF 4415Cat# WPMT 04 02 04-PF 4415Series WPMT-PF
$18.55List $23.38
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade4415
CoatingTiCN
Description
The Sandvik Coromant 8021009 is a WPMT 04 02 04-PF 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert size code0402
Insert styleWPMT
Insert thickness0.0938
Iso codeWPMT 04 02 04-PF 4415
Manufacturers catalog numberWPMT 04 02 04-PF 4415
Manufacturer grade4415
Relief angle11
Tolerance codeM
