Sandvik Coromant

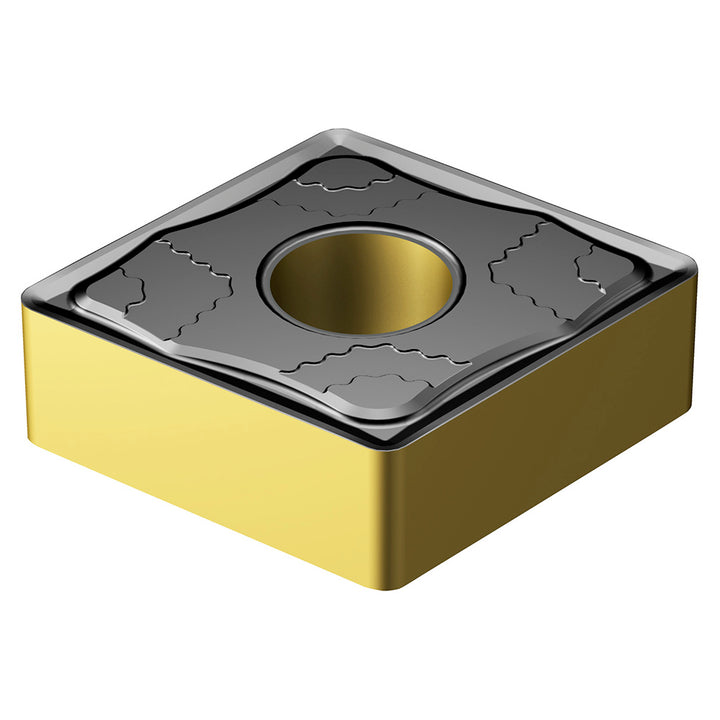

CNMG 12 04 08-PMC 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021022
MFR# 8021022ISO/ANSI# CNMG 12 04 08-PMC 4415Cat# CNMG 12 04 08-PMC 4415Series CNMG-PMC
$18.70List $23.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021022 is a CNMG 12 04 08-PMC 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-PMC 4415
Manufacturers catalog numberCNMG 12 04 08-PMC 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
