Sandvik Coromant

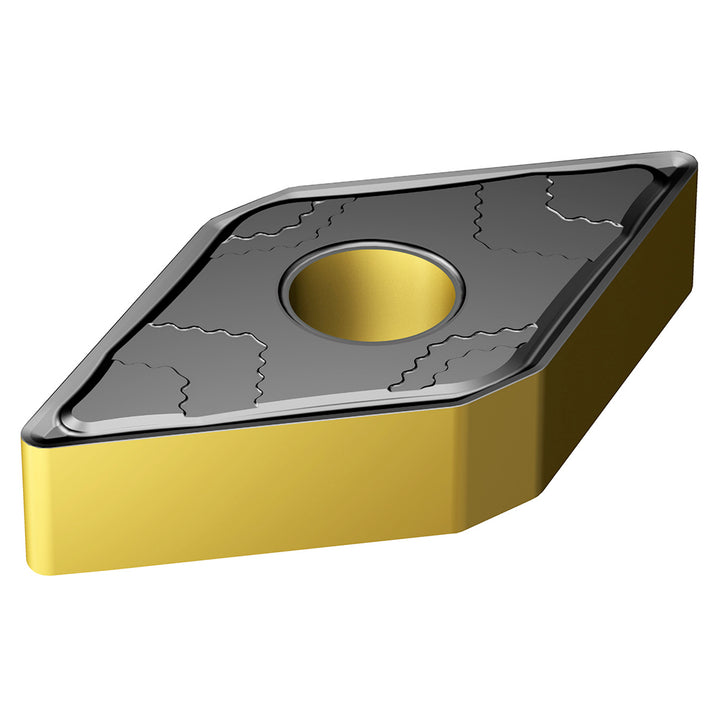

DNMG 11 04 04-PMC 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021076
MFR# 8021076ISO/ANSI# DNMG110404Cat# DNMG 11 04 04-PMC 4415Series DNMG-PMC
$21.76List $27.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021076 is a DNMG 11 04 04-PMC 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Ansi insert codeDNMG331
Ansi size code331
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 04-PMC 4415
Iso insert codeDNMG110404
Iso size code110404
Manufacturers catalog numberDNMG 11 04 04-PMC 4415
Manufacturer grade4415
Relief angle0
Side clearanceNegative
Tolerance codeM
