Sandvik Coromant

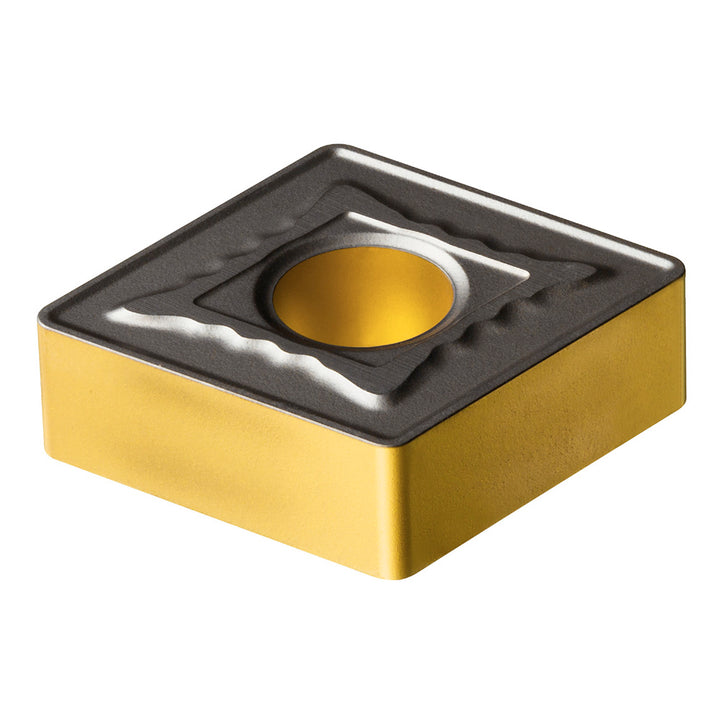

CNMG 19 06 12-MR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021124
MFR# 8021124ISO/ANSI# CNMG 19 06 12-MR 4415Cat# CNMG 19 06 12-MR 4415Series CNMG-MR (ISO P)
$42.34List $54.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021124 is a CNMG 19 06 12-MR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1906
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 12-MR 4415
Manufacturers catalog numberCNMG 19 06 12-MR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
