Sandvik Coromant

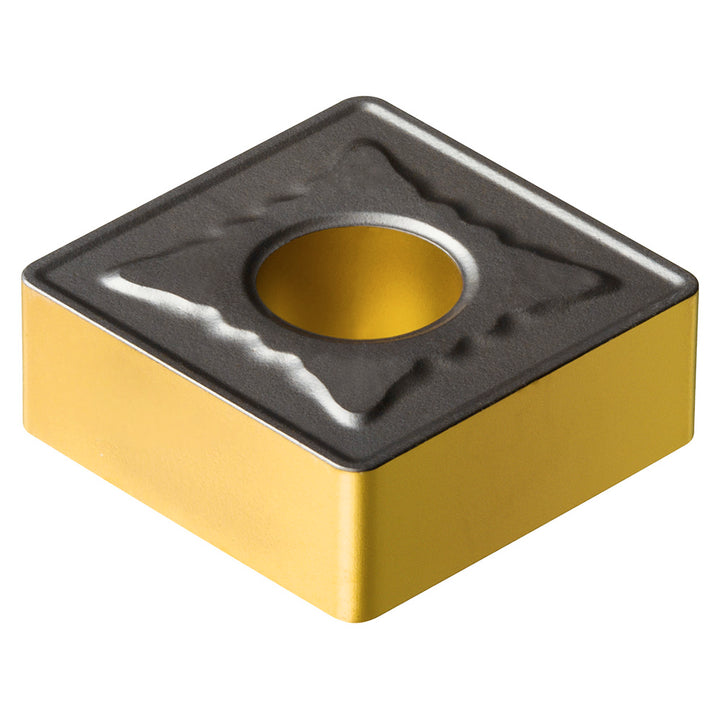

SNMG 12 04 16-MR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021133
MFR# 8021133ISO/ANSI# SNMG 12 04 16-MR 4415Cat# SNMG 12 04 16-MR 4415Series SNMG-MR (ISO P)
$18.70List $23.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021133 is a SNMG 12 04 16-MR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code434
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 16-MR 4415
Manufacturers catalog numberSNMG 12 04 16-MR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
