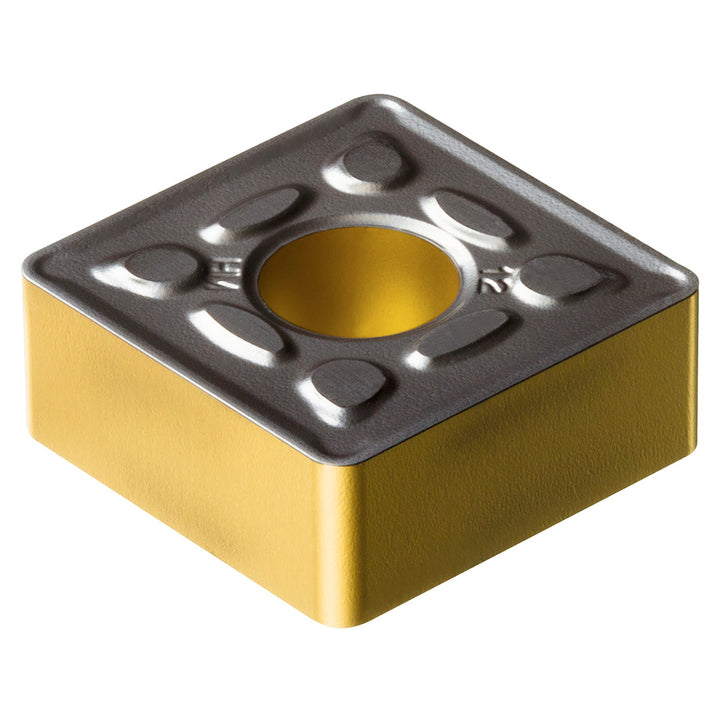

SNMG 19 06 16-HM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021224
MFR# 8021224ISO/ANSI# SNMG 19 06 16-HM 4415Cat# SNMG 19 06 16-HM 4415Series SNMG-HM
$46.04List $59.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021224 is a SNMG 19 06 16-HM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1906
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 16-HM 4415
Manufacturers catalog numberSNMG 19 06 16-HM 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
