Sandvik Coromant

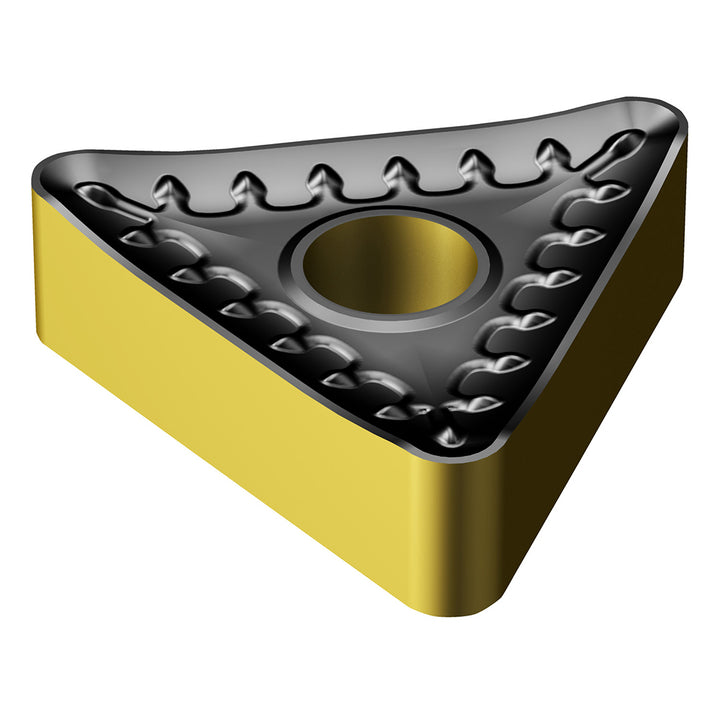

TNMM 22 04 08-QR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021226
MFR# 8021226ISO/ANSI# TNMM 22 04 08-QR 4415Cat# TNMM 22 04 08-QR 4415Series TNMM-QR
$23.40List $30.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021226 is a TNMM 22 04 08-QR 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code2204
Insert styleTNMM
Iso codeTNMM 22 04 08-QR 4415
Manufacturers catalog numberTNMM 22 04 08-QR 4415
Manufacturer grade4415
Primary workpiece materialSteel
Tolerance codeM
