Sandvik Coromant

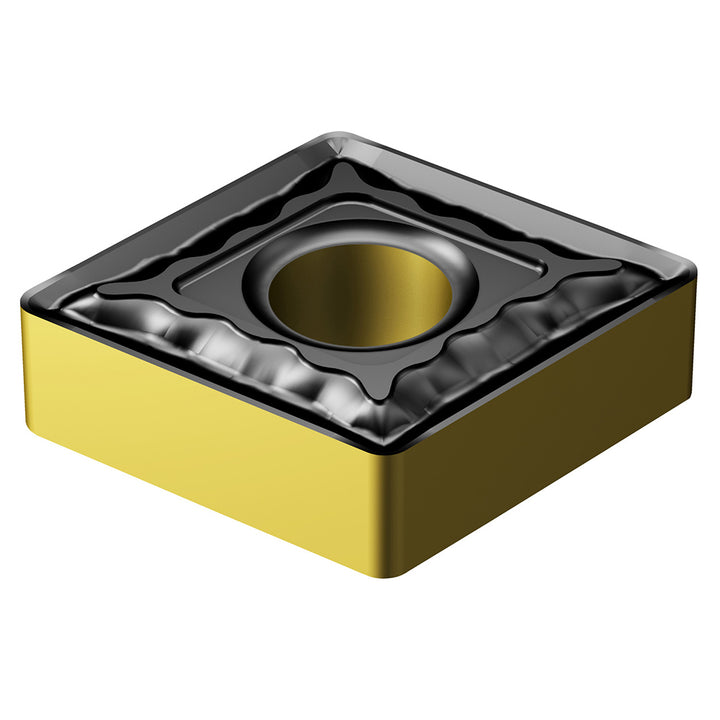

CNMG 19 06 04-QM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021227
MFR# 8021227ISO/ANSI# CNMG 19 06 04-QM 4415Cat# CNMG190604QM4415Series CNMG-QM
$45.72List $58.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021227 is a CNMG 19 06 04-QM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1906
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 04-QM 4415
Manufacturers catalog numberCNMG190604QM4415
Manufacturer grade4415
Primary workpiece materialSteel
Tolerance codeM
