Sandvik Coromant

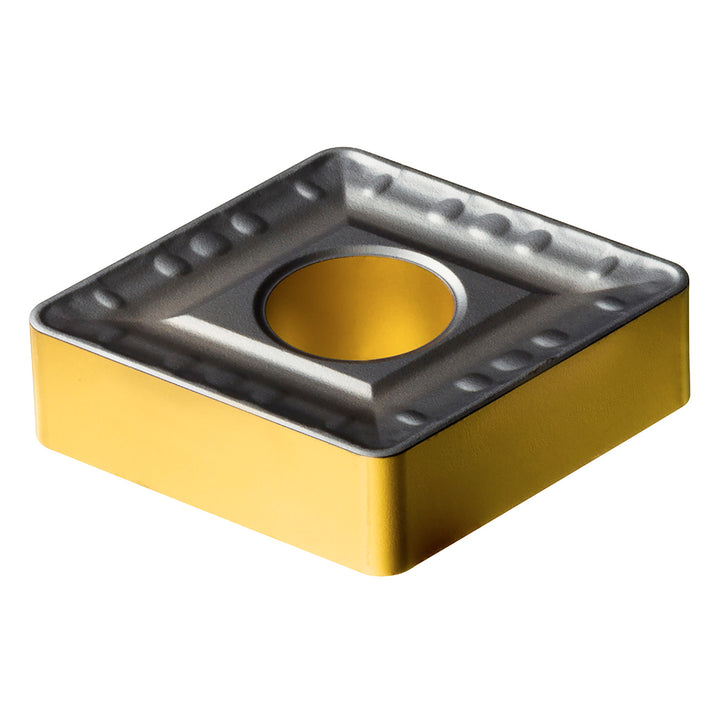

CNMM 19 06 24-HR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021229
MFR# 8021229ISO/ANSI# CNMM 19 06 24-HR 4415Cat# CNMM 19 06 24-HR 4415Series T-Max P
$46.85List $59.04
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021229 is a CNMM 19 06 24-HR 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerHR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0938
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1906
Insert styleCNMM
Insert thickness in1/4
Iso codeCNMM 19 06 24-HR 4415
Manufacturers catalog numberCNMM 19 06 24-HR 4415
Manufacturer grade4415
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
