Sandvik Coromant

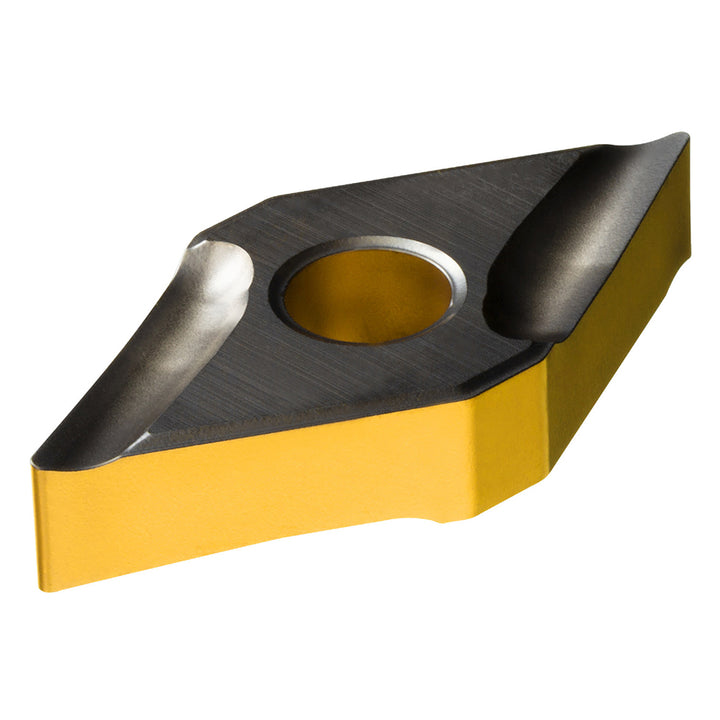

DNMG 15 04 04R-K 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021236
MFR# 8021236ISO/ANSI# DNMG 15 04 04R-K 4415Cat# DNMG 15 04 04R-K 4415Series DNMG..R; L-K
$24.53List $31.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021236 is a DNMG 15 04 04R-K 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Included angle55
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Iso codeDNMG 15 04 04R-K 4415
Manufacturers catalog numberDNMG 15 04 04R-K 4415
Manufacturer grade4415
Primary workpiece materialSteel
Tolerance codeM
