Sandvik Coromant

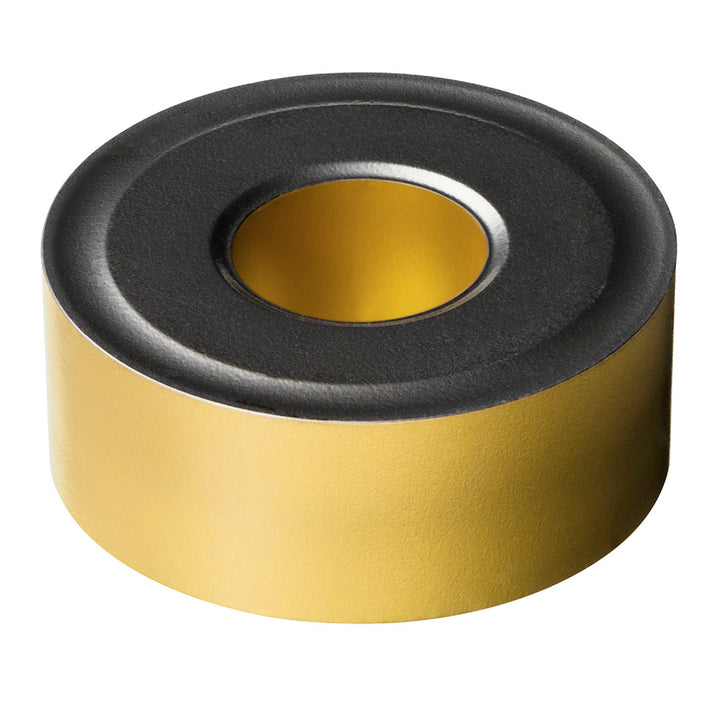

RNMG 15 06 00 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021239
MFR# 8021239ISO/ANSI# RNMG 15 06 00 4415Cat# RNMG 15 06 00 4415Series RNMG
$27.20List $34.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021239 is a RNMG 15 06 00 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in5/16
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1506
Insert styleRNMG
Insert thickness in1/4
Iso codeRNMG 15 06 00 4415
Manufacturers catalog numberRNMG 15 06 00 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
