Sandvik Coromant

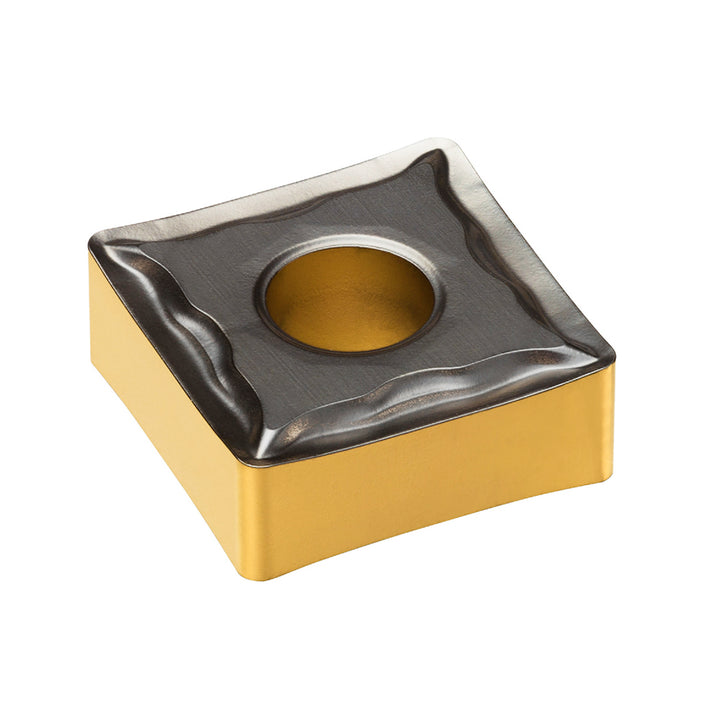

SNMG 12 04 08-MF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021262
MFR# 8021262ISO/ANSI# SNMG 12 04 08-MF 4415Cat# SNMG 12 04 08-MF 4415Series SNMG-MF (ISO P)
$21.14List $26.64
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021262 is a SNMG 12 04 08-MF 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-MF 4415
Manufacturers catalog numberSNMG 12 04 08-MF 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
