Sandvik Coromant

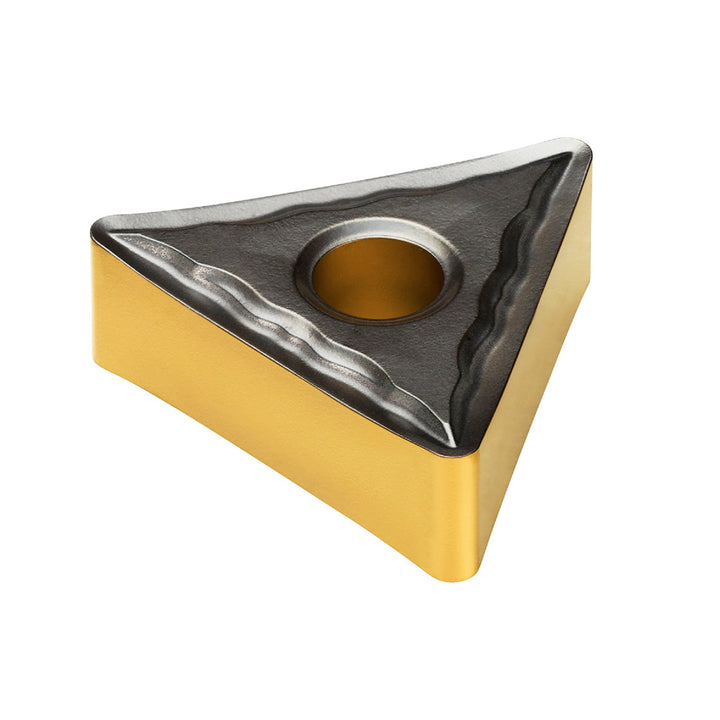

TNMG 11 03 08-MF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021266
MFR# 8021266ISO/ANSI# TNMG 11 03 08-MF 4415Cat# TNMG 11 03 08-MF 4415Series TNMG-MF (ISO P)
$11.23List $14.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021266 is a TNMG 11 03 08-MF 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code222
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG 11 03 08-MF 4415
Manufacturers catalog numberTNMG 11 03 08-MF 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
