Sandvik Coromant
VNMG 16 04 08-MF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021278
MFR# 8021278ISO/ANSI# VNMG 16 04 08-MF 4415Cat# VNMG 16 04 08-MF 4415Series VNMG-MF (ISO P)
$37.69List $48.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4415
MaterialCarbide
CoatingTiCN
Description

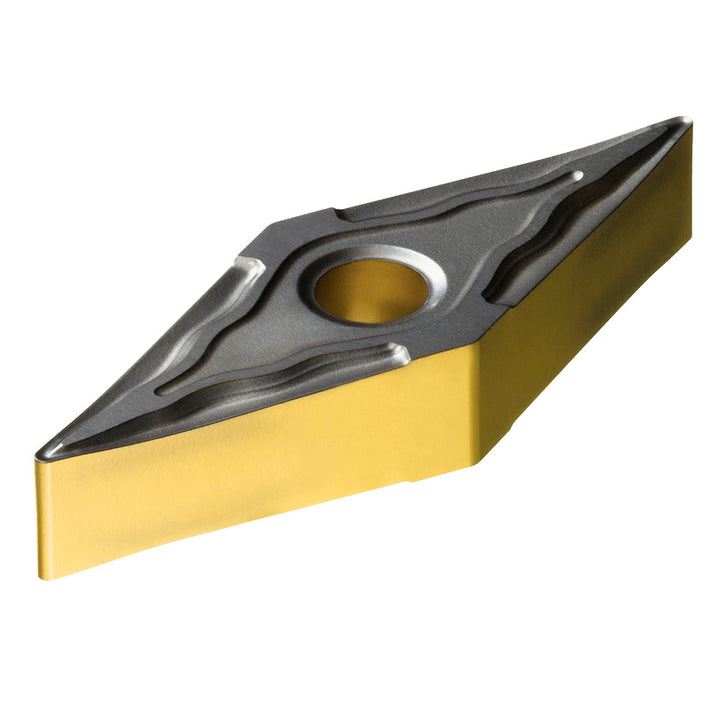

The Sandvik Coromant 8021278 is a VNMG 16 04 08-MF 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1604
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 08-MF 4415
Manufacturers catalog numberVNMG 16 04 08-MF 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
