Sandvik Coromant

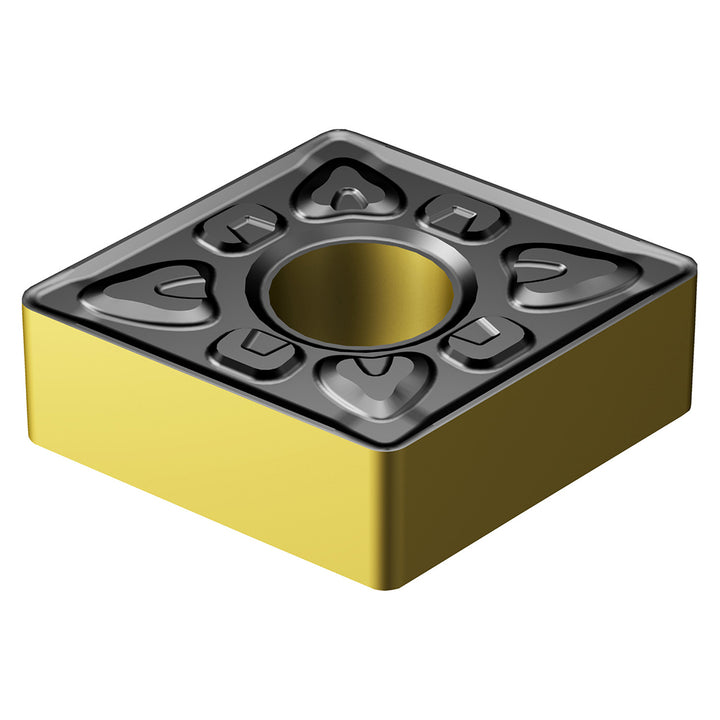

CNMG 16 06 16-XMR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8021320
MFR# 8021320ISO/ANSI# CNMG 16 06 16-XMR 4415Cat# CNMG 16 06 16-XMR 4415Series CNMG-XMR
$30.74List $39.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8021320 is a CNMG 16 06 16-XMR 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerXMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle80
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1606
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 16-XMR 4415
Manufacturers catalog numberCNMG 16 06 16-XMR 4415
Manufacturer grade4415
Primary workpiece materialSteel
Tolerance codeM
