Sandvik Coromant

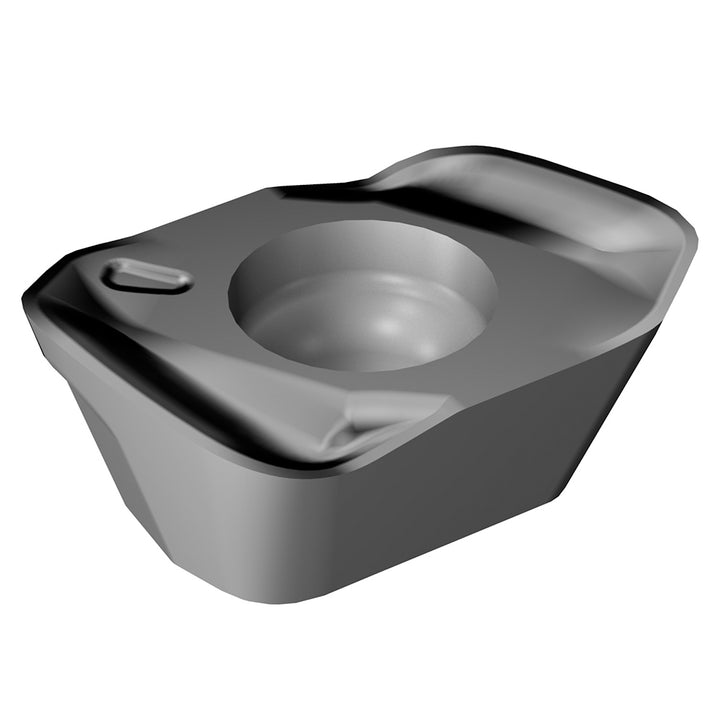

MH20-080425M-M20 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 8029484
MFR# 8029484ISO/ANSI# MH20-080425M-M20 1010Cat# MH20-080425M-M20 1010Series MH20
$15.34List $19.00
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade1010
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 8029484 is a MH20-080425M-M20 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for hard material.
Specifications
Ansi codeMH20-080425M-M20 1010
Chip breakerM20
Coating finishTiAlN
Coating processPVD
Corner radius0.0827
Cutter series compatibilityMH20
Cutting edge styleCorner Rounded
Hole diameter0.1339
Included angle degree105
Inscribed circle0.3346
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size08
Insert size code080425
Insert styleMH20
Iso codeMH20-080425M-M20 1010
Length0.2323
Length range0.0000 to 0.3200
Manufacturers catalog numberMH20-080425M-M20 1010
Manufacturer grade1010
Material applicationHard Material
Material gradeP10
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle13
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1587
Thickness range0.1500 to 0.1750
Width0.3346
