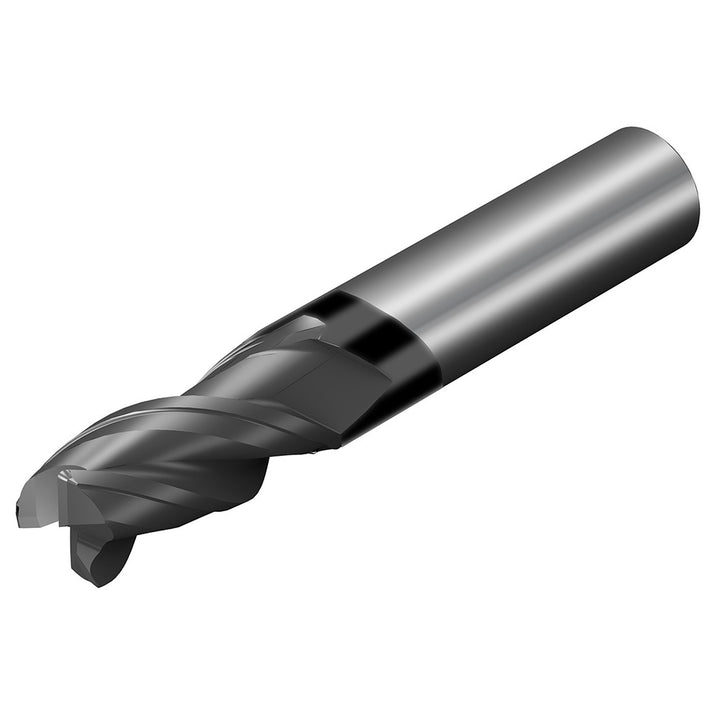

1/8in" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Sandvik Coromant 8035567

Sandvik Coromant

1/8in" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Sandvik Coromant 8035567

MFR# 8035567Cat# WK-30125-R013 X1BHSeries CoroMill Dura

$28.32List $35.05 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8in
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Sandvik Coromant 8035567 is a 1/8in 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. 3/8in length of cut, 1-1/2in overall length. Series CoroMill Dura.

Specifications

CentercuttingYes
Coating finishAlTiN
Corner radius0.0130
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Flute directionRight Hand
Flute typeSpiral
Length of cut in3/8in
Manufacturers catalog numberWK-30125-R013 X1BH
Mill diameter in1/8in
Number of flutes3
Overall length in1-1/2in
Shank diameter in1/8in
Single or double endSingle
Variable helixYes
Variable indexYes
