Sandvik Coromant

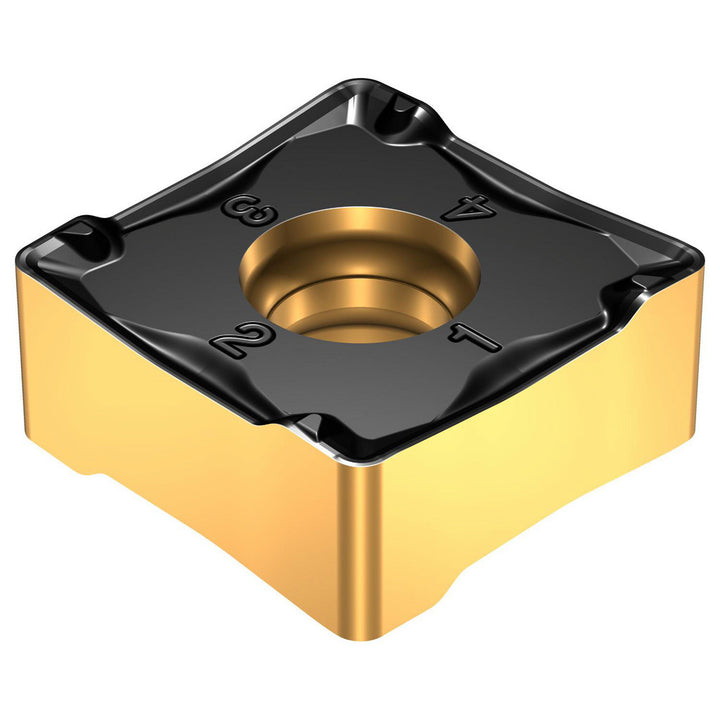

MF80-130508M-M50 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 8172037
MFR# 8172037ISO/ANSI# MF80-130508M-M50 3330Cat# MF80-130508M-M50 3330Series MF80
$32.42List $40.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade3330
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 8172037 is a MF80-130508M-M50 3330 solid carbide indexable insert, grade 3330, TiCN coated. Suited for cast iron.
Specifications
Ansi codeMF80-130508M-M50 3330
Chip breakerM50
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityMF80
Cutting edge styleCorner Rounded
Hole diameter0.1890
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code130508
Insert styleMF80
Iso codeMF80-130508M-M50 3330
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberMF80-130508M-M50 3330
Manufacturer grade3330
Material applicationCast Iron
Maximum depth of cut0.3543
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.5118
