Sandvik Coromant

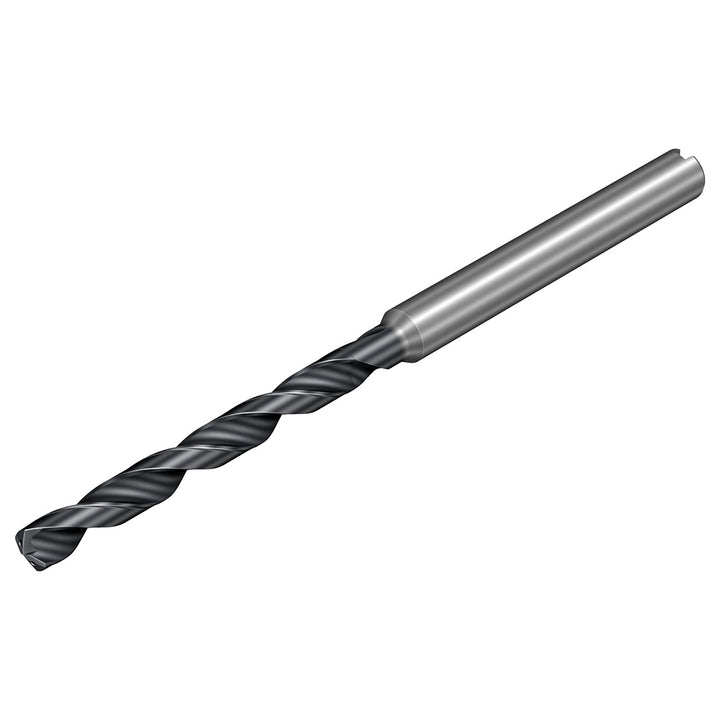

0.0906" Solid Carbide Drill Bit, TiAlN Lite, 140° point - Sandvik Coromant 8173223
MFR# 8173223Series CoroDrill 862
$196.17
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN Lite
Description
The Sandvik Coromant 8173223 is a 0.0906" Solid Carbide drill bit with a TiAlN Lite finish, 140° point. Suited for steel. Series CoroDrill 862.
Specifications
Coating finishTiAlN Lite
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.0906
Drill point angle140
Flute by diameter ratio9XD
Flute length (mm)0.94
Flute typeSpiral
Maximum drilling depth0.8150
Overall length2.4016in
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel
Shank diameter0.1181
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
