Sandvik Coromant

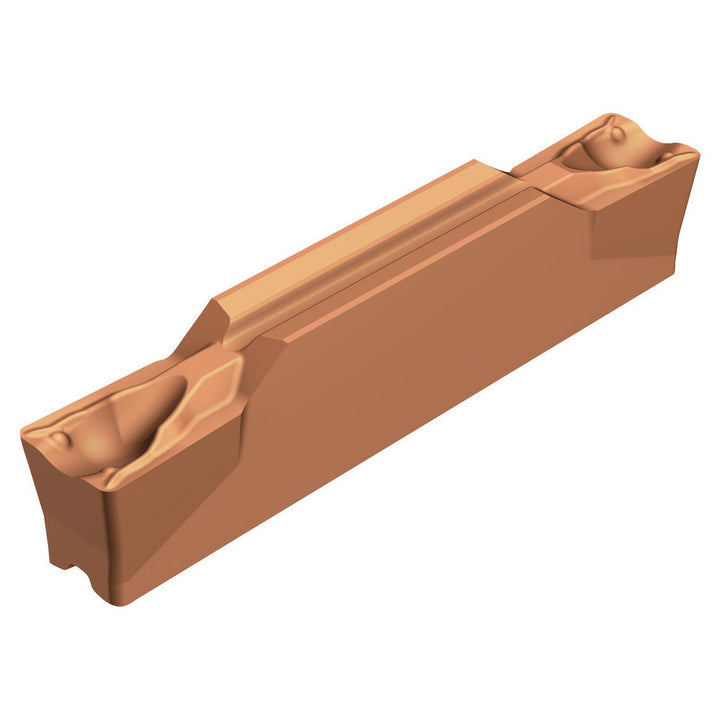

C2I-H2N-0400-0004-TF1225 Carbide Insert, Grade 1225, TiAlN/TiAlSiN/TiSiN - Sandvik Coromant 8194362
MFR# 8194362ISO/ANSI# C2I-H2N-0400-0004-TF1225Cat# C2I-H2N-0400-0004-TF1225Series C2I
$48.59List $62.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1225
MaterialCarbide
CoatingTiAlN/TiAlSiN/TiSiN
Description
The Sandvik Coromant 8194362 is a C2I-H2N-0400-0004-TF1225 carbide indexable insert, grade 1225, TiAlN/TiAlSiN/TiSiN coated. Suited for steel.
Specifications
Ansi codeC2I-H2N-0400-0004-TF1225
Chip breakerTF
Coating finishTiAlN/TiAlSiN/TiSiN
Coating processPVD
Corner radius0.0157
Cutting height0.9252
Cutting width0.1575
Face groovingYes
For use withIndexable Grooving Toolholders
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert sizeH2
Insert size codeH
Insert styleC2I
Iso codeC2I-H2N-0400-0004-TF1225
Lead angle0.000
Manufacturers catalog numberC2I-H2N-0400-0004-TF1225
Manufacturer grade1225
Maximum depth of cut0.0866
Measurement typeMetric
Multi use toolYes
Number of cutting edges2
Overall length0.9757
Overall width0.1575
Primary workpiece materialSteel
RakeNeutral
Rake angle7.000
Secondary workpiece materialStainless Steel
