Sandvik Coromant

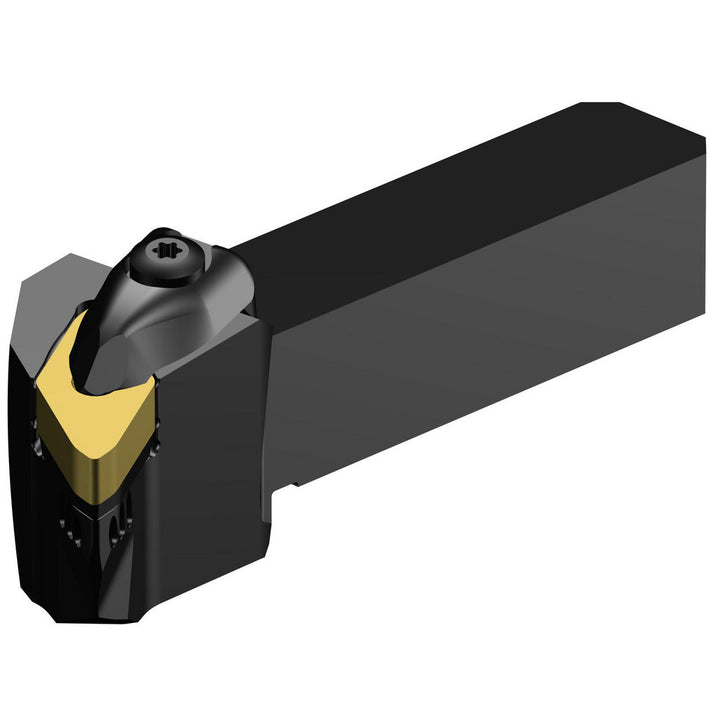

Indexable Turning & Profiling - Sandvik Coromant 8247091
MFR# 8247091Cat# QS-CP-25BR-12-12BSeries CoroTurn® Prime
$432.06List $459.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 8247091 indexable turning & profiling. Series CoroTurn® Prime.
Specifications
Back of bar to cutting edge3.9764
Compatible insert size code1208
Complete insert compatibilityCP-B1208D
Coolant throughYes
Corner radius3.1496
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length2.0079
Insert compatibilityCP-B1208D
Insert holding methodClamp
Insert inscribed circle4.7244
Insert thickness0.2362
Iso numberQS-CP-25BR-12-12B
Manufacturers catalog numberQS-CP-25BR-12-12B
Multi use toolNo
RakeNegative
Rake angle-4
Shank height0.7500
Shank width0.7500
Toolholder materialSteel
Toolholder styleQS-CP-25BR/L..-12B (INCH)
Vibration dampeningNo
