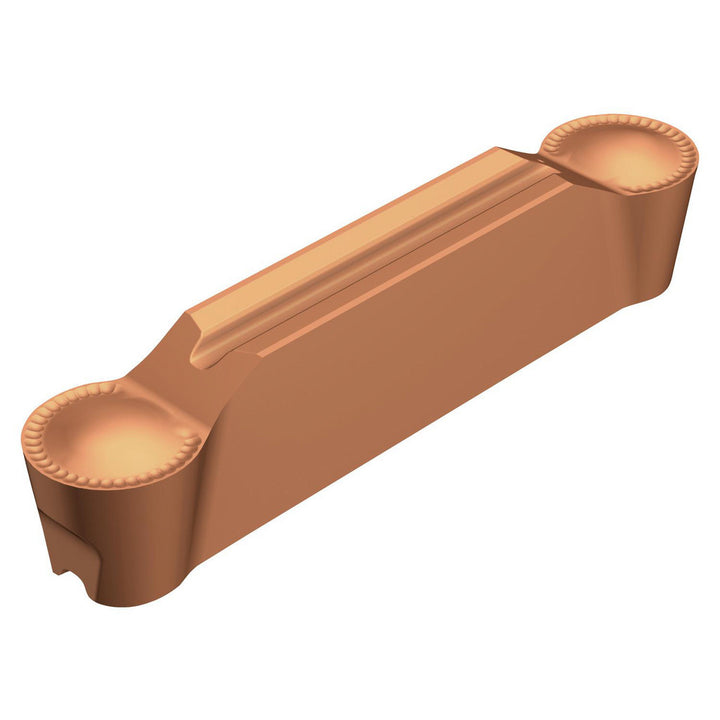

C2I-G2N-0400-RM 1225 Carbide Insert, Grade 1225, TiAlN/TiAlSiN/TiSiN - Sandvik Coromant 8290303
MFR# 8290303ISO/ANSI# C2I-G2N-0400-RM 1225Series CoroCut® 2
$45.81List $58.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1225
MaterialCarbide
CoatingTiAlN/TiAlSiN/TiSiN
Description
The Sandvik Coromant 8290303 is a C2I-G2N-0400-RM 1225 carbide indexable insert, grade 1225, TiAlN/TiAlSiN/TiSiN coated. Suited for steel.
Specifications
ApplicationsProfiling
ChipbreakerRM
Coating finishTiAlN/TiAlSiN/TiSiN
Coating processPVD
Corner radius0.0787
Insert handNeutral
Insert holding methodClamp
Insert length0.7894
Insert materialCarbide
Insert size codeG2
Insert styleC2I
Iso codeC2I-G2N-0400-RM 1225
Manufacturer grade1225
Maximum depth of cut0.0512
Number of cutting edges2
Primary workpiece materialSteel
Rake angle0.000
Relief angle7.000
Secondary workpiece materialStainless Steel
Side length0.7894
StandardsISO
Thickness0.1706
Width0.1575
