Sandvik Coromant

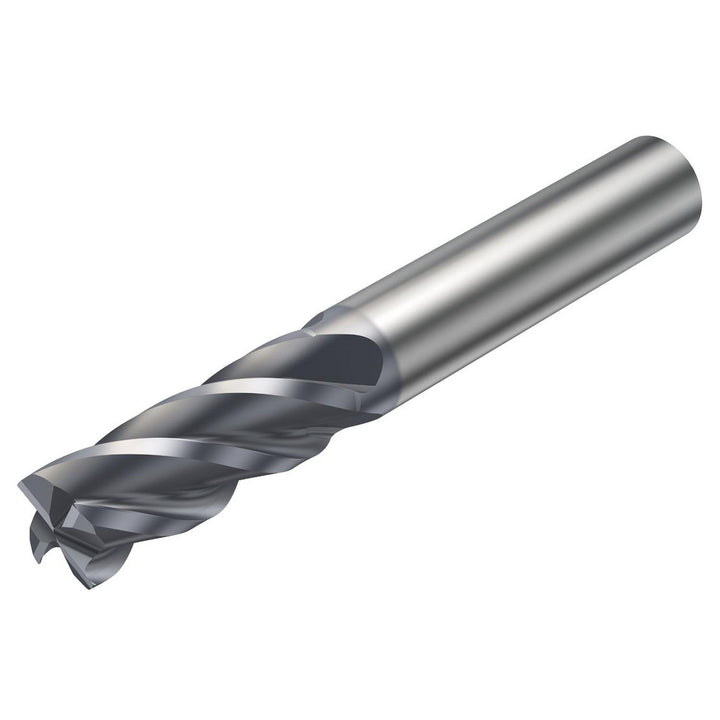

0.1969" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlCrSiN - Sandvik Coromant 8351831

MFR# 8351831Cat# 2P342-0500-PASeries 2P342

$108.63List $139.32 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlCrSiN

Description

The Sandvik Coromant 8351831 is a 0.1969 4-flute Solid Carbide (P2BM) corner radius & corner chamfer end mill with a TiAlCrSiN finish for longer tool life. Suited for steel, cast iron. Series 2P342.

Specifications

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.10

Chamfer width (mm)0.10

ChipbreakerNo

Coating finishTiAlCrSiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleMedium

Length of cut (mm)11.00

Length typeRegular

Manufacturers catalog number2P342-0500-PA

Material gradeP2BM

Material removal typeRoughing

Mill diameter0.1969

Mill diameter toleranceh10

Number of flutes4

Overall length (mm)57.00

PitchNormal

Primary workpiece materialSteel; Cast Iron

Reach length (mm)11.00

Secondary workpiece materialCast Iron

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
