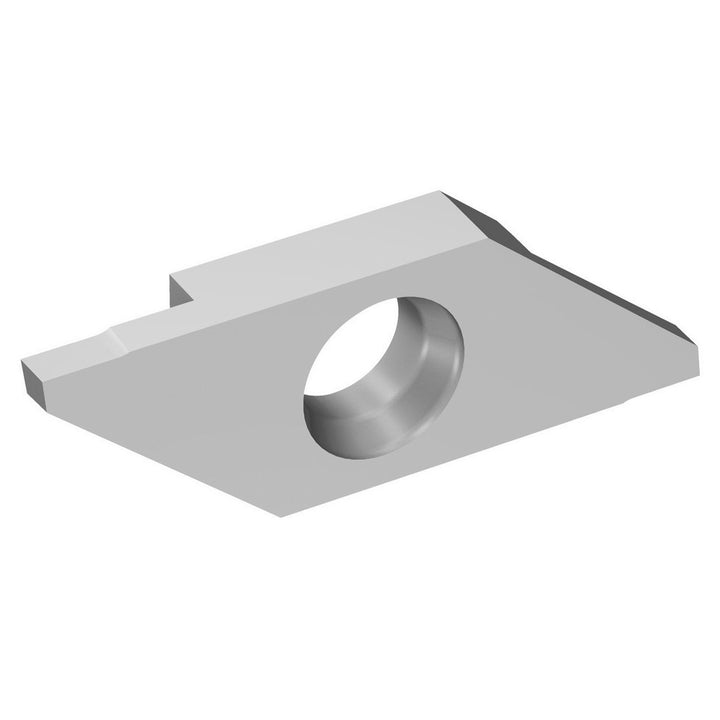

MACR 3 200-T 1205 Carbide Insert, Grade 1205, PVD - Sandvik Coromant 8432218

Sandvik Coromant

MACR 3 200-T 1205 Carbide Insert, Grade 1205, PVD - Sandvik Coromant 8432218

MFR# 8432218ISO/ANSI# MACR 3 200-T 1205Cat# MACR 3 200-T 1205Series XS

$73.01List $92.02 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade1205
MaterialCarbide
CoatingPVD

Description

The Sandvik Coromant 8432218 is a MACR 3 200-T 1205 carbide indexable insert, grade 1205, PVD coated. Suited for super-alloys & titanium.

Specifications

ChipbreakerMAC
Coating finishPVD
Corner radius0.0020
Cutting directionRight Hand
Cutting height0.3228
Cutting tool applicationParting
Cutting width0.0787
Insert handRight Hand
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert seat size3
Insert size code3
Insert styleMACR
Iso codeMACR 3 200-T 1205
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog numberMACR 3 200-T 1205
Manufacturer grade1205
Maximum depth of cut0.3228
Multi use toolNo
Primary workpiece materialSuper-alloys & Titanium
Secondary workpiece materialStainless Steel
