SC Tool

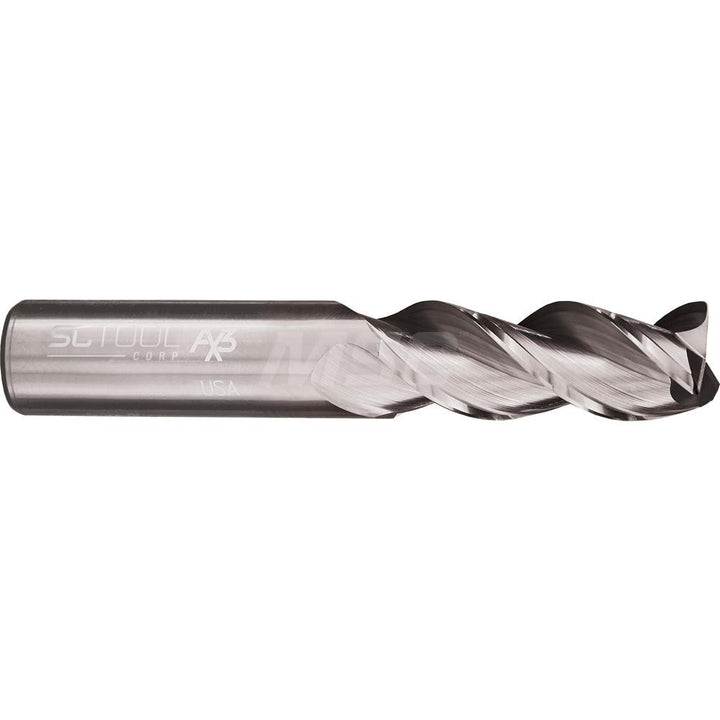

3/8" 3-Flute Solid Carbide Corner Radius End Mill - SC Tool 10170

MFR# 10170Cat# AX30375-1024-18Series AX3

$42.31List $46.68 Save 9%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The SC Tool 10170 is a 3/8 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3 overall length. Series AX3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0900

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in1-1/4

Length typeLong

Manufacturers catalog numberAX30375-1024-18

Material applicationNon-Ferrous Metal

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance-0.0006 to 0.0000 in

Number of flutes3

Overall length in3

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
