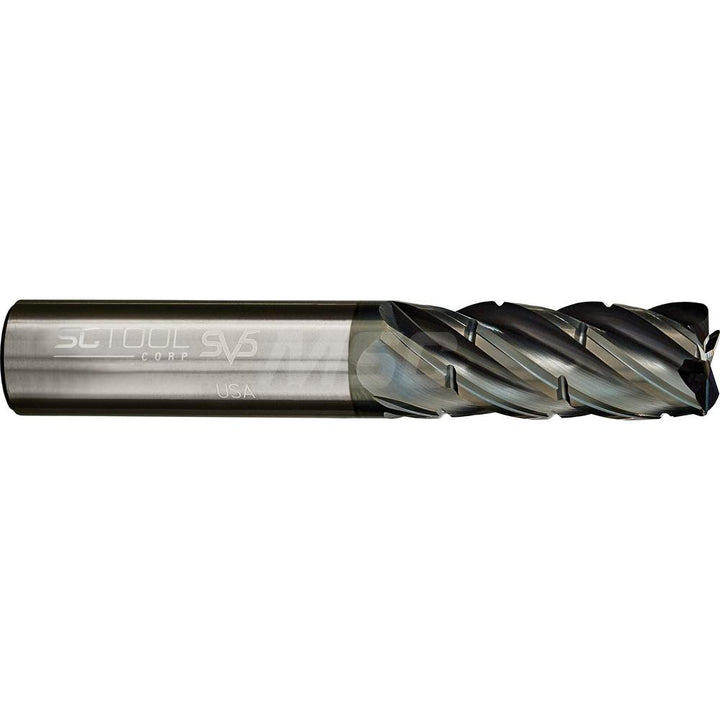

3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - SC Tool 20471

MFR# 20471Cat# SV50750-1840-24CBSeries SV5

$239.65List $261.18 Save 8%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingAlCrN

Description

The SC Tool 20471 is a 3/4 5-flute Solid Carbide corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 2-1/4 length of cut, 5 overall length. Series SV5.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishAlCrN

Coolant throughNo

Corner radius0.1200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in2-1/4

Length typeStandard

Manufacturers catalog numberSV50750-1840-24CB

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hardened Steel

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes5

Overall length in5

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
