Scientific Cutting Tools

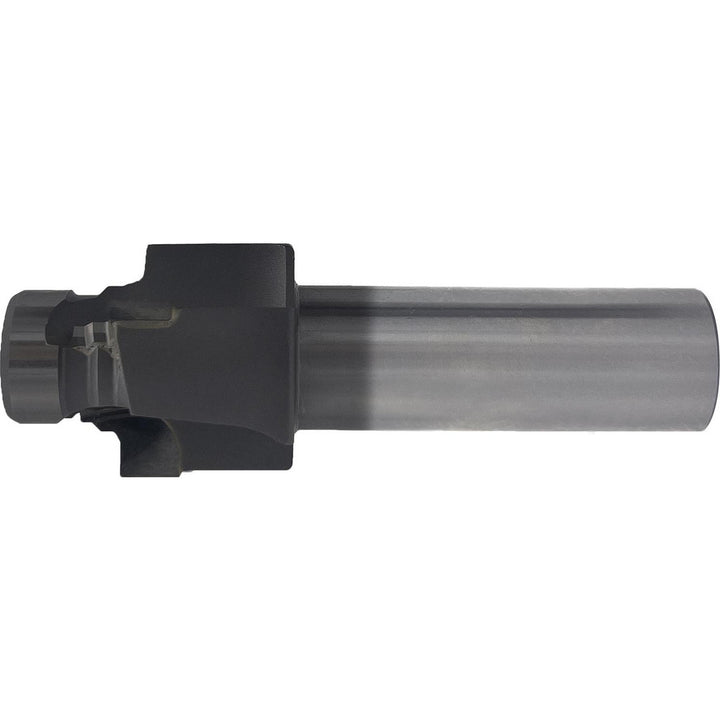

Porting Tools & Inserts - Scientific Cutting Tools AS5202-06SA
MFR# AS5202-06SASeries Standard
$188.99List $222.41
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingAlTiN
Description
The Scientific Cutting Tools AS5202-06SA porting tools & inserts. Series Standard.
Specifications
Coating finishAlTiN
Flute typeStraight
Head length1.2500
Identification grooveNo
Maximum pilot diameter0.5825
Minimum pilot diameter0.5110
Number of flutes3
Overall length in3-1/4
Pilot length0.4040
Pilot typePlain
Port thread size9/16-18
Seal angle30
Shank diameter in1/2
Shank length2.0000
Shank typeStraight
Spotface diameter1.0120
StandardsAS5202; MS33649
Thread typeUNJF
Tool materialCarbide-Tipped
Tube dash number6.000
Tube outside diameter compatibility in3/8
Workpiece compatibilityTubes
