Scientific Cutting Tools

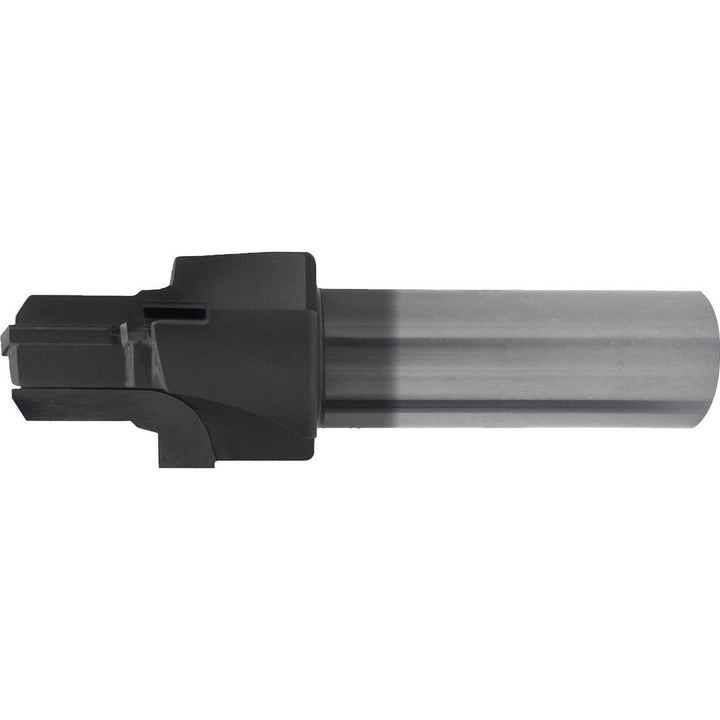

Porting Tools & Inserts - Scientific Cutting Tools SAEJ1926-04RX3A
MFR# SAEJ1926-04RX3ASeries Coolant Through
$230.37List $271.11
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingAlTiN
Description
The Scientific Cutting Tools SAEJ1926-04RX3A porting tools & inserts. Series Coolant Through.
Specifications
Coating finishAlTiN
Flute typeStraight
Head length1.2400
Identification grooveNo
Maximum pilot diameter0.4895
Minimum pilot diameter0.3880
Number of flutes3
Overall length3.1200
Pilot length0.4570
Pilot typeReamer
Port thread size7/16-20
Seal angle12
Shank diameter in1/2
Shank length1.8800
Shank typeStraight
Spotface diameter0.8380
StandardsSAEJ1926; MS16142
Thread typeUNF
Tool materialCarbide-Tipped
Tube dash number4.000
Tube outside diameter compatibility in1/4
Workpiece compatibilityTubes
