Scientific Cutting Tools

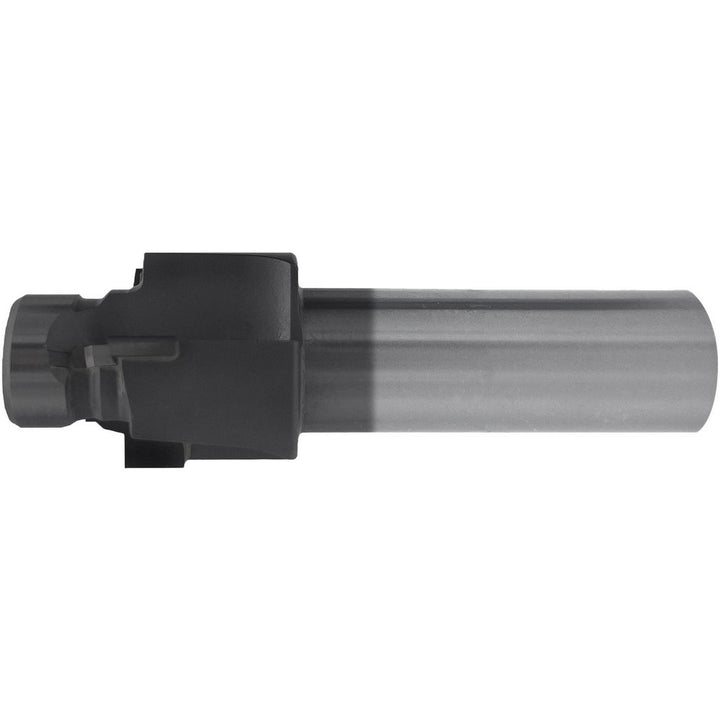

Porting Tools & Inserts - Scientific Cutting Tools SAEJ1926-08SA
MFR# SAEJ1926-08SASeries Standard
$201.94List $237.65
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingAlTiN
Description
The Scientific Cutting Tools SAEJ1926-08SA porting tools & inserts. Series Standard.
Specifications
Coating finishAlTiN
Flute typeStraight
Head length1.4500
Identification grooveNo
Maximum pilot diameter0.8135
Minimum pilot diameter0.6850
Number of flutes3
Overall length3.5700
Pilot length0.4520
Pilot typePlain
Port thread size3/4-16
Seal angle15
Shank diameter in3/4
Shank length2.1200
Shank typeStraight
Spotface diameter1.1980
StandardsSAEJ1926; MS16142
Thread typeUNF
Tool materialCarbide-Tipped
Tube dash number8.000
Tube outside diameter compatibility in1/2
Workpiece compatibilityTubes
